Professional On Oxygen And Nitrogen Gas Generation Solution.

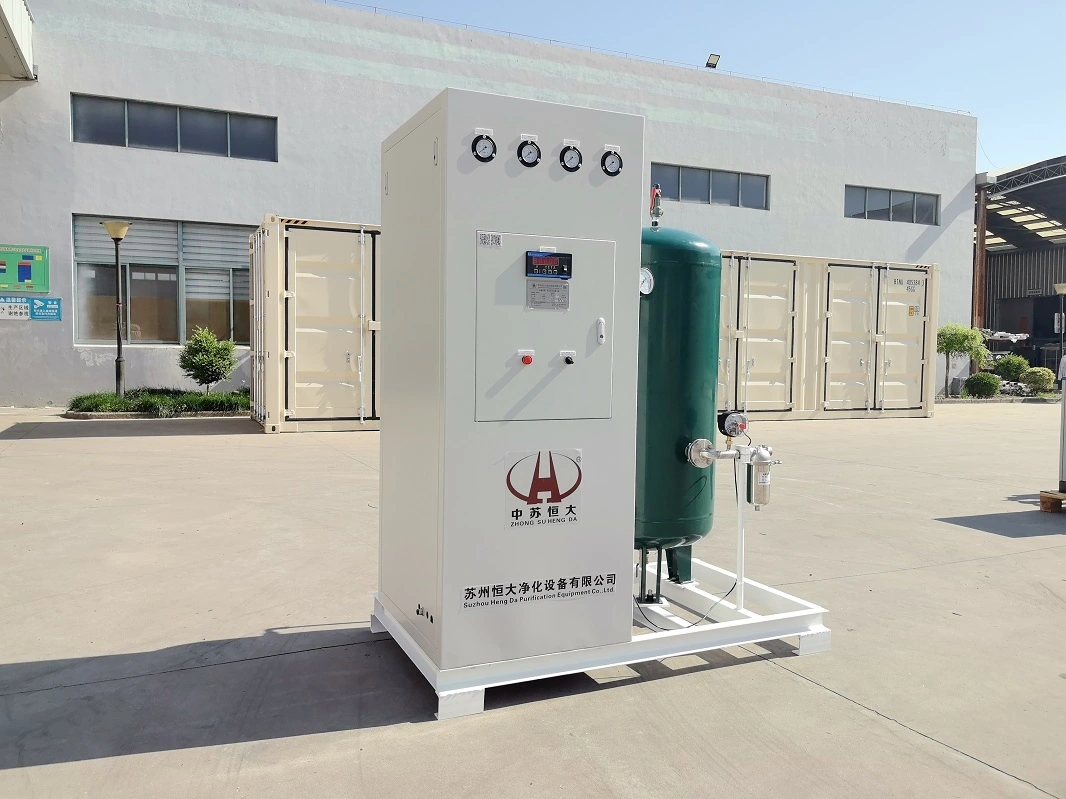

99.9% 10Nm3/h Purity Nitrogen Generator for Chinese Herbal Medicine Prevent Oxidation Mold and Insects
The industrial-grade nitrogen generator of Zhongsu Hengda can provide high-purity nitrogen with a purity of 99.9% - 99.9995%. The flow rate is adjustable, ranging from 3 to 3000 cubic meters per hour. It features oil-free compression, multi-stage 0.01 micron filtration, and a 30% lower operating cost compared to traditional nitrogen cylinders. These products are highly suitable for Chinese medicinal material preservation, herbal processing and mildew-proof oxidation-free storage. These products have passed ISO/CE certification and possess functions such as rapid gas stabilization, real-time oxygen monitoring, modular rack design, and intelligent alarm system. They can provide continuous, pollution-free, and cost-effective nitrogen supply for traditional Chinese medicine warehouses, herbal processing plants and pharmaceutical packaging workshops, while also retaining medicinal efficacy and extending shelf life of Chinese herbal medicines.
PRODUCT DESCRIPTION
Zhongsu Hengda's industrial-grade nitrogen generators deliver 99.9%–99.9995% ultra-pure nitrogen, a specialized traditional Chinese medicine preservation solution engineered to meet strict storage and processing requirements for herbal materials. It creates a stable inert atmosphere to effectively inhibit oxidation, mildew and insect growth, perfectly suited for Chinese medicinal material storage, herbal piece processing and sealed preservation. Replacing traditional nitrogen cylinders with safe on-site gas supply, its dry, high-purity nitrogen protects herbal active ingredients from deterioration and moisture damage, retaining original color, aroma and medicinal efficacy while extending shelf life, making it an indispensable equipment for TCM processing and warehouse preservation.
SHOW DETAILS
Product parameters
|
Purity |
95%-99.9995% |
|
N2 Capacity |
1-2000Nm3/h |
|
Discharge O2 Pressure |
0-5.5 Bar (Normal) |
|
O2 Dew Point |
－70℃ (Normal) |
|
Operation |
Full automatic |
PRODUCT INTRODUCTION
ADVANTAGES AND FEATURES
COMMON MODELS
|
Model |
Purity |
Capacity |
Model |
Purity |
Capacity |
Model |
Purity |
Capacity |
|
HDFD95-1 |
95% |
1 |
HDFD99-1 |
99% |
1 |
HDFD99.5-1 |
99.5% |
1 |
|
HDFD95-5 |
|
5 |
HDFD99-5 |
|
5 |
HDFD99.5-5 |
|
5 |
|
HDFD95-10 |
|
10 |
HDFD99-10 |
|
10 |
HDFD99.5-10 |
|
10 |
|
HDFD95-20 |
|
20 |
HDFD99-20 |
|
20 |
HDFD99.5-20 |
|
20 |
|
HDFD95-30 |
|
30 |
HDFD99-30 |
|
30 |
HDFD99.5-30 |
|
30 |
|
HDFD95-40 |
|
40 |
HDFD99-40 |
|
40 |
HDFD99.5-40 |
|
40 |
|
HDFD95-50 |
|
50 |
HDFD99-50 |
|
50 |
HDFD99.5-50 |
|
50 |
|
HDFD95-100 |
|
100 |
HDFD99-100 |
|
100 |
HDFD99.5-100 |
|
100 |
|
HDFD95-120 |
|
120 |
HDFD99-120 |
|
120 |
HDFD99.5-120 |
|
120 |
|
HDFD95-150 |
|
150 |
HDFD99-150 |
|
150 |
HDFD99.5-150 |
|
150 |
|
HDFD95-200 |
|
200 |
HDFD99-200 |
|
200 |
HDFD99.5-200 |
|
200 |
|
HDFD95-500 |
|
500 |
HDFD99-500 |
|
500 |
HDFD99.5-500 |
|
500 |
|
HDFD95-800 |
|
800 |
HDFD99-800 |
|
800 |
HDFD99.5-800 |
|
800 |
|
HDFD95-1000 |
|
1000 |
HDFD99-1000 |
|
1000 |
HDFD99.5-1000 |
|
1000 |
|
HDFD95-2000 |
|
2000 |
HDFD99-2000 |
|
2000 |
HDFD99.5-2000 |
|
2000 |
|
HDFD99.9-1 |
99.9% |
1 |
HDFD99 99-1 |
99.9% |
1 |
HDFD99.999-1 |
99.999% |
1 |
|
HDFD99.9-5 |
|
5 |
HDFD99.99-5 |
|
5 |
HDFD99.999-5 |
|
5 |
|
HDFD99.9-10 |
|
10 |
HDFD99.99-10 |
|
10 |
HDFD99.999-10 |
|
10 |
|
HDFD99.9-20 |
|
20 |
HDFD99.99-20 |
|
20 |
HDFD99.999-20 |
|
20 |
|
HDFD99.9-30 |
|
30 |
HDFD99.99-30 |
|
30 |
HDFD99.999-30 |
|
30 |
|
HDFD99.9-40 |
|
40 |
HDFD99.99-40 |
|
40 |
HDFD99.999-40 |
|
40 |
|
HDFD99.9-50 |
|
50 |
HDFD99.99-50 |
|
50 |
HDFD99.999-50 |
|
50 |
|
HDFD99.9-100 |
|
100 |
HDFD99.99-1.00 |
|
100 |
HDFD99.999-100 |
|
100 |
|
HDFD99.9-120 |
|
120 |
HDFD99.99-120 |
|
120 |
HDFD99.999-120 |
|
120 |
|
HDFD99.9-150 |
|
150 |
HDFD99.99-150 |
|
150 |
HDFD99.999-150 |
|
150 |
|
HDFD99.9-200 |
|
200 |
HDFD99.99-200 |
|
200 |
HDFD99.999-200 |
|
200 |
|
HDFD99.9-500 |
|
500 |
HDFD99.99-500 |
|
500 |
HDFD99.999-500 |
|
500 |
|
HDFD99.9-800 |
|
800 |
HDFD99.99-800 |
|
800 |
HDFD99.999-800 |
|
800 |
|
HDFD99.9-1000 |
|
1000 |
HDFD99.99-1000 |
|
1000 |
HDFD99.999-1000 |
|
1000 |
|
HDFD99.9-2000 |
|
2000 |
HDFD99.99-2000 |
|
2000 |
HDFD99.999-2000 |
|
2000 |
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
