Professional On Oxygen And Nitrogen Gas Generation Solution.

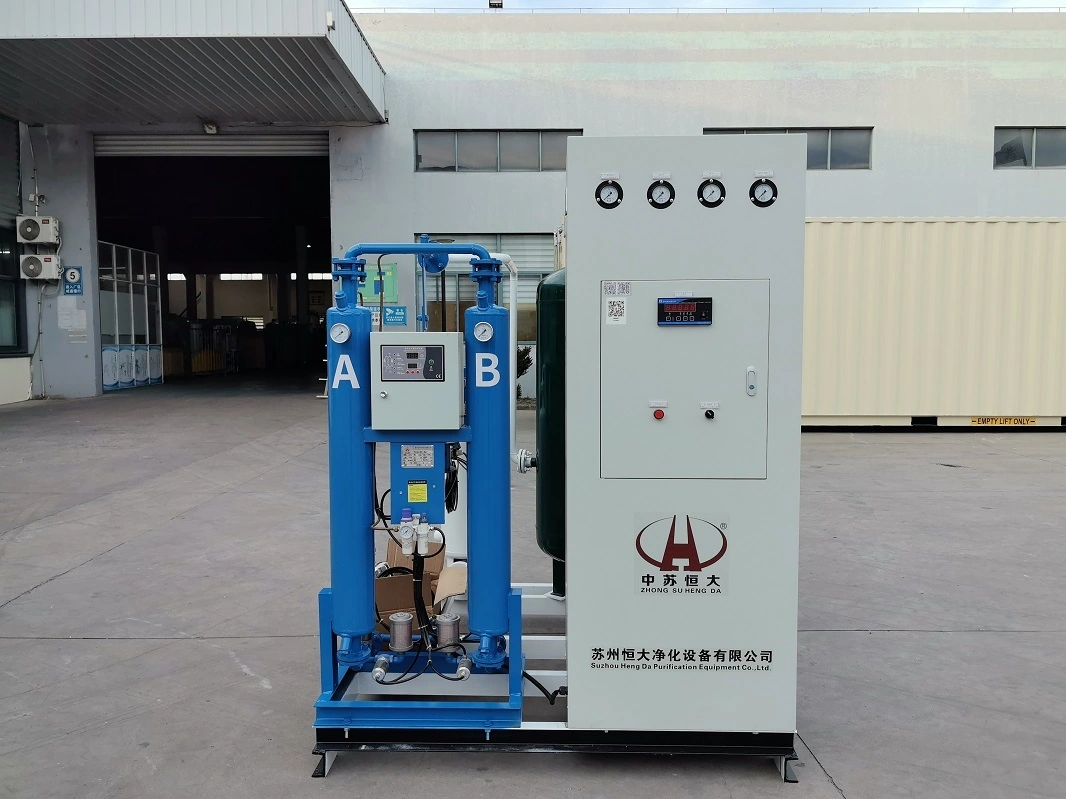

99.99% 5Nm3/h Laboratory Nitrogen Generator for Analytical Instruments Carrier Gas and Protection Gas Supply
Zhongsu Hengda's laboratory-grade nitrogen generators deliver 99.5%-99.9995% purity N₂, specifically engineered for analytical instruments and research processes—maintaining <1ppm O₂ and <-60°C dew point for interference-free analysis, offering adjustable 1-50 L/min flow for GC, HPLC, and sample preparation, and ensuring zero contamination through oil-free compression with multi-stage 0.01μm filtration while consuming 35% less power than traditional gas supply methods. Featuring rapid stabilization , real-time O₂/H₂O monitoring with data logging, compact benchtop/rack-mount designs, and smart alarms for purity deviation or faults, these ISO and CE certified systems are compatible, validated for pharmaceutical and environmental testing, and proven to enhance GC-MS detector sensitivity, support reliable VOC sample concentration, and enable oxidation-free sample storage in inert atmosphere chambers.
PRODUCT DESCRIPTION
Zhongsu Hengda’s laboratory-grade nitrogen generators deliver 99.5%–99.9995% ultra-pure nitrogen—a specialized solution built for the unique demands of modern analytical laboratories, turning "unstable gas supply" into consistent experimental results while ensuring instrument protection and data accuracy.
Its precise nitrogen output serves as a stable carrier or protective gas for GC, HPLC, LC-MS, and sample preparation systems—ensuring repeatable retention times, clean baselines, and contamination-free reaction environments.
The nitrogen meets laboratory-grade standards, replacing hazardous gas cylinders. Its dry, oxygen-free property also protects sensitive detectors and samples from oxidation or moisture interference—ensuring every analysis maintains reliable accuracy, sensitivity, and reproducibility.
SHOW DETAILS
Product parameters
|
Purity |
95%-99.9995% |
|
N2 Capacity |
1-2000Nm3/h |
|
Discharge O2 Pressure |
0-5.5 Bar (Normal) |
|
O2 Dew Point |
－70℃ (Normal) |
|
Operation |
Full automatic |
PRODUCT INTRODUCTION
ADVANTAGES AND FEATURES
COMMON MODELS
|
Model |
Purity |
Capacity |
Model |
Purity |
Capacity |
Model |
Purity |
Capacity |
|
HDFD95-1 |
95% |
1 |
HDFD99-1 |
99% |
1 |
HDFD99.5-1 |
99.5% |
1 |
|
HDFD95-5 |
|
5 |
HDFD99-5 |
|
5 |
HDFD99.5-5 |
|
5 |
|
HDFD95-10 |
|
10 |
HDFD99-10 |
|
10 |
HDFD99.5-10 |
|
10 |
|
HDFD95-20 |
|
20 |
HDFD99-20 |
|
20 |
HDFD99.5-20 |
|
20 |
|
HDFD95-30 |
|
30 |
HDFD99-30 |
|
30 |
HDFD99.5-30 |
|
30 |
|
HDFD95-40 |
|
40 |
HDFD99-40 |
|
40 |
HDFD99.5-40 |
|
40 |
|
HDFD95-50 |
|
50 |
HDFD99-50 |
|
50 |
HDFD99.5-50 |
|
50 |
|
HDFD95-100 |
|
100 |
HDFD99-100 |
|
100 |
HDFD99.5-100 |
|
100 |
|
HDFD95-120 |
|
120 |
HDFD99-120 |
|
120 |
HDFD99.5-120 |
|
120 |
|
HDFD95-150 |
|
150 |
HDFD99-150 |
|
150 |
HDFD99.5-150 |
|
150 |
|
HDFD95-200 |
|
200 |
HDFD99-200 |
|
200 |
HDFD99.5-200 |
|
200 |
|
HDFD95-500 |
|
500 |
HDFD99-500 |
|
500 |
HDFD99.5-500 |
|
500 |
|
HDFD95-800 |
|
800 |
HDFD99-800 |
|
800 |
HDFD99.5-800 |
|
800 |
|
HDFD95-1000 |
|
1000 |
HDFD99-1000 |
|
1000 |
HDFD99.5-1000 |
|
1000 |
|
HDFD95-2000 |
|
2000 |
HDFD99-2000 |
|
2000 |
HDFD99.5-2000 |
|
2000 |
|
HDFD99.9-1 |
99.9% |
1 |
HDFD99 99-1 |
99.9% |
1 |
HDFD99.999-1 |
99.999% |
1 |
|
HDFD99.9-5 |
|
5 |
HDFD99.99-5 |
|
5 |
HDFD99.999-5 |
|
5 |
|
HDFD99.9-10 |
|
10 |
HDFD99.99-10 |
|
10 |
HDFD99.999-10 |
|
10 |
|
HDFD99.9-20 |
|
20 |
HDFD99.99-20 |
|
20 |
HDFD99.999-20 |
|
20 |
|
HDFD99.9-30 |
|
30 |
HDFD99.99-30 |
|
30 |
HDFD99.999-30 |
|
30 |
|
HDFD99.9-40 |
|
40 |
HDFD99.99-40 |
|
40 |
HDFD99.999-40 |
|
40 |
|
HDFD99.9-50 |
|
50 |
HDFD99.99-50 |
|
50 |
HDFD99.999-50 |
|
50 |
|
HDFD99.9-100 |
|
100 |
HDFD99.99-1.00 |
|
100 |
HDFD99.999-100 |
|
100 |
|
HDFD99.9-120 |
|
120 |
HDFD99.99-120 |
|
120 |
HDFD99.999-120 |
|
120 |
|
HDFD99.9-150 |
|
150 |
HDFD99.99-150 |
|
150 |
HDFD99.999-150 |
|
150 |
|
HDFD99.9-200 |
|
200 |
HDFD99.99-200 |
|
200 |
HDFD99.999-200 |
|
200 |
|
HDFD99.9-500 |
|
500 |
HDFD99.99-500 |
|
500 |
HDFD99.999-500 |
|
500 |
|
HDFD99.9-800 |
|
800 |
HDFD99.99-800 |
|
800 |
HDFD99.999-800 |
|
800 |
|
HDFD99.9-1000 |
|
1000 |
HDFD99.99-1000 |
|
1000 |
HDFD99.999-1000 |
|
1000 |
|
HDFD99.9-2000 |
|
2000 |
HDFD99.99-2000 |
|
2000 |
HDFD99.999-2000 |
|
2000 |
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
