Professional On Oxygen And Nitrogen Gas Generation Solution.

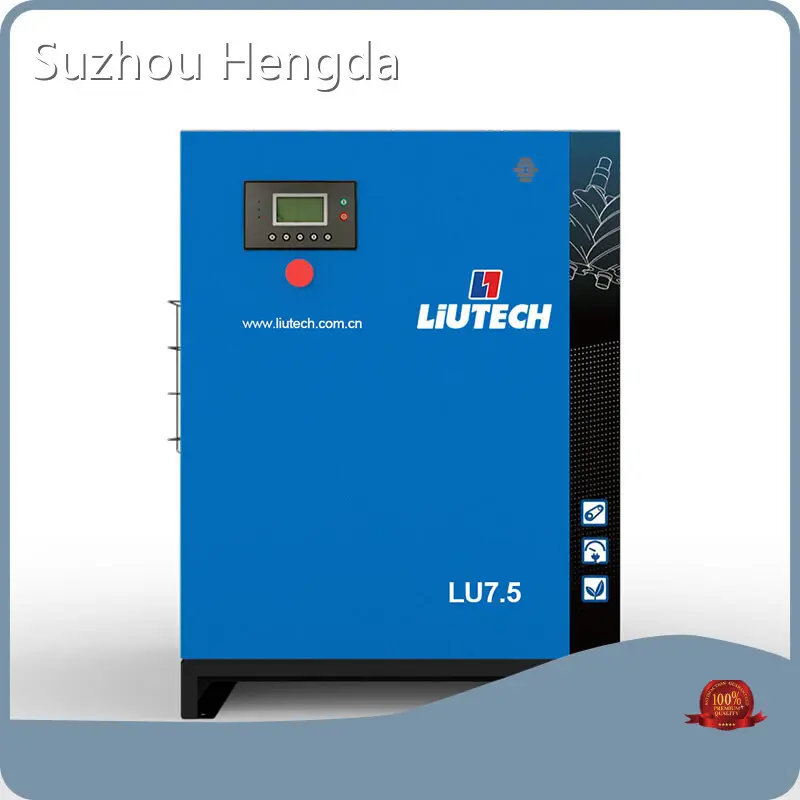

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda 1

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda 2

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda 3

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda 4

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda 5

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda

Inquiry

Product Features

● High performance: increased cooling area, high temperature environment, more energy saving than similar products

● Integrated air compressor: Plug and play, no installation, saving space

● Simple maintenance: reasonable layout, humanized design, mature models; No matter routine maintenance or breakdown repair, it can be easily handled

● To cope with harsh conditions:

The whole machine is equipped with pre-filter to improve the operating conditions of the machine;

The heavy duty nano air filter option is provided to increase the ash capacity of the air filter;

According to the worst environmental standards of the national industrial zone, the filter area is increased by 30% and the intake noise is reduced

Model No.	Rated working pressure(Bar)	Maximum working pressure(Bar)	Capacity(m3/min)	Voltage(V), Protection Level	Size(mm)	Interface size	Weight(kg)
LU4	8	8	0.58	380V IP54	650x650x890	G1/2	152
LU4	10	10	0.51	380V IP54	650x650x890	G1/2	152
LU5.5	8	8	0.82	380V IP54	650x650x890	G1/2	166
LU5.5	10	10	0.68	380V IP54	650x650x890	G1/2	166
LU7.5	8	8	1.13	380V IP54	650x650x890	G1/2	175
LU7.5	10	10	0.90	380V IP54	650x650x890	G1/2	175
LU11	7	7	1.79	380V IP55	850x790x1260	G1	293
	8	8	1.78		850x790x1260	G1	293
	10	10	1.36		850x790x1260	G1	293
	13	13	1.19		850x790x1260	G1	293
LU15	7	7	2.25	380V IP55	850x790x1260	G1	341
	8	8	2.24		850x790x1260	G1	341
	10	10	2.00		850x790x1260	G1	341
	13	13	1.54		850x790x1260	G1	341
LU18.5	7	7	3.04	380V IP55	850x790x1260	G1	364
	8	8	3.01		850x790x1260	G1	364
	10	10	2.57		850x790x1260	G1	364
	13	13	2.10		850x790x1260	G1	364
LU22G	7	7	3.7	380V IP55	1150x850x1000	G1	436
	8	8	3.5		1150x850x1000	G1	436
	10	10	3.0		1150x850x1000	G1	436
	13	13	2.4		1150x850x1000	G1	436
LU30G	7	7	5.4	380V IP55	1430x950x1200	G1	559
	8	8	5.0		1430x950x1200	G1	559
	10	10	4.5		1430x950x1200	G1	559
LU37G	7	7	6.2	380V IP55	1430x950x1200	G1 1/2	614
	8	8	6.1		1430x950x1200	G1 1/2	614
	10	10	5.1		1430x950x1200	G1 1/2	614
LU45 -	7	7	8.5	380V IP55	1720x980x1600	G1 1/2	870
	8	8	8.0		1720x980x1600	G1 1/2	870
	10	10	7.5		1720x980x1600	G1 1/2	870
	13	13	6.5		1720x980x1600	G1 1/2	870
LU55 -	7	7	10.6	380V IP55	1950x1090x1600	G2	1,220
	8	8	10.1		1950x1090x1600	G2	1,220
	10	10	9.2		1950x1090x1600	G2	1,220
	13	13	7.9		1950x1090x1600	G2	1,220
LU75 -	7	7	13.7	380V IP55	1950x1090x1600	G2	1,285
	8	8	13.1		1950x1090x1600	G2	1,285
	10	10	11.9		1950x1090x1600	G2	1,285
	13	13	10.3		1950x1090x1600	G2	1,285
LU90 -	7	7	17.16	380V IP55	2254x1090x1600	G2	1,535
	8	8	17.1		2254x1090x1600	G2	1,535
	10	10	15.3		2254x1090x1600	G2	1,535
	13	13	12.52		2254x1090x1600	G2	1,535
LU110 -	7	7	21.2	IP55	226012301600	G2"	1,870
	8	8	20	IP55	226012301600	G2"	1,870
	10	10	17.1	IP55	226012301600	G2"	1,870
	12.5	13	14.3	IP55	226012301600	G2"	1,870
LU132 -	7	7	25	IP55	226012301600	G2" 风冷	1,920
	8	8	24.3	IP55	226012301600	G2" 风冷	1,920
	10	10	21	IP55	226012301600	G2" 风冷	1,920
	12.5	13	17	IP55	226012301600	G2" 风冷	1,920
LU160 -	7	7.5	30.5	IP55	288017541930	DN80	2,970
	8	8.5	29.2	IP55	288017541930	DN80	2,970
	10	10.5	26.9	IP55	288017541930	DN80	2,970
LU180 -	7	7.5	32.9	IP55	288017541930	DN80	3,150
	8	8.5	31.2	IP55	288017541930	DN80	3,150
	10	10.5	29.1	IP55	288017541930	DN80	3,150
LU200 -	7	7.5	36.8	IP55	350217541983 /380V	DN100	3,450
	8	8.5	34.4	IP55	350217541983 /380V	DN100	3,450
	10	10.5	31.3	IP55	350217541983 /380V	DN100	3,450
LU250 -	7	7.5	45.8	IP55	350217541983 /380V	DN100	3,620
	8	8.5	43.3	IP55	350217541983 /380V	DN100	3,620
	10	10.5	39	IP55	350217541983 /380V	DN100	3,620

USER EVALUATE

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda 7

Industry experience

Having been in the industry for years, we know the market situation and industry requirements more clearly than most manufacturers.

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda 8

Market area

We have accumulated extensive knowledge about the quality standards as well as market needs of thesecountries.

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda 9

Team introduction

That is our highly-qualified employees. We have R&D experts, designers, QC professionals, and other highly qualified employees.

10 Hp Rotary Screw Air Compressor with Dryer by Zhongsu Hengda 10

Product advantages

They outperform their competitors when it comes to durability and performance, deeply trusted by both domestic andforeign customers.

FAQ

The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.

How to get a prompt quotation?

When you send us inquiry, please kindly tell us the below technical information.

1) O2/N2/H2 Flow rate: ____Nm3/h

2) O2/N2/H2 Purity: ____%

3) O2/N2/H2 Discharge pressure: ____Bar

4) Voltages and Frequency: _____V/PH/HZ

5) Application or use for which industry.

We will recommend the most suitable equipment for you according to your needs.

How long is your delivery time?

Generally it is 10-50 working days depending on your order.

What is the terms of payment?

T/T, L/C, etc.

What is the standard of package?

he equipment is packed in wooden cases of export standard

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, ISO13485,CE,SGS

Do you have similar customer cases?

Our equipment is used in a wide range of industries and has rich customer cases.You can tell me the application industry and country of the device, and we will provide you with cases.

How to install the equipment after purchase？

You can choose the remote video guide of the engineer or on-site installation.

What if there is a after-sales problem？

Hengda provide guarantees for the equipment in 12 months. And out of the warranty period, we continue to provide service.

Company Advantages

· Zhongsu Hengda 10 hp rotary screw air compressor with dryer is manufactured using the optimum quality raw material and advanced technology.

· The product has an extended service life to deliver an enduring performance.

· The assurance of 10 hp rotary screw air compressor with dryer will contribute to the development of Zhongsu Hengda.

Company Features

· Suzhou Hengda Purification Equipment Co., Ltd wins a good reputation from customers by high quality 10 hp rotary screw air compressor with dryer. We have accumulated years of experience in this industry.

· We've built strong strategic partnerships with our customers and establish a solid customer base, giving our access to more customers from every corner of the globe.

· Zhongsu Hengda brings its advantages into full play and is very popular among most consumers. Get an offer!

Application of the Product

The 10 hp rotary screw air compressor with dryer produced by Suzhou Hengda is widely used in industry.

Our solutions are developed by understanding the customer's situation and combining the current market conditions. Therefore, they are all targeted and can effectively solve problems of customers.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
