Professional On Oxygen And Nitrogen Gas Generation Solution.
Air Separation Unit by Zhongsu Hengda-1
Product details of the air separation unit
Product Information
Zhongsu Hengda air separation unit is designed with an innovative and attractive appearance. Its performance can meet the requirements of customers. It is favored by customers both at home and abroad.
Product principle
1.2NH3 ----- 3H2 + N2
2.The HDAQ series ammonia decomposition hydrogen production plant uses liquid ammonia as raw material, and the gas is heated and decomposed under the action of catalyst to produce a mixture containing 75% hydrogen and 25% nitrogen. Pure hydrogen with purity of 99.999% can be further prepared by pressure swing adsorption method.
|

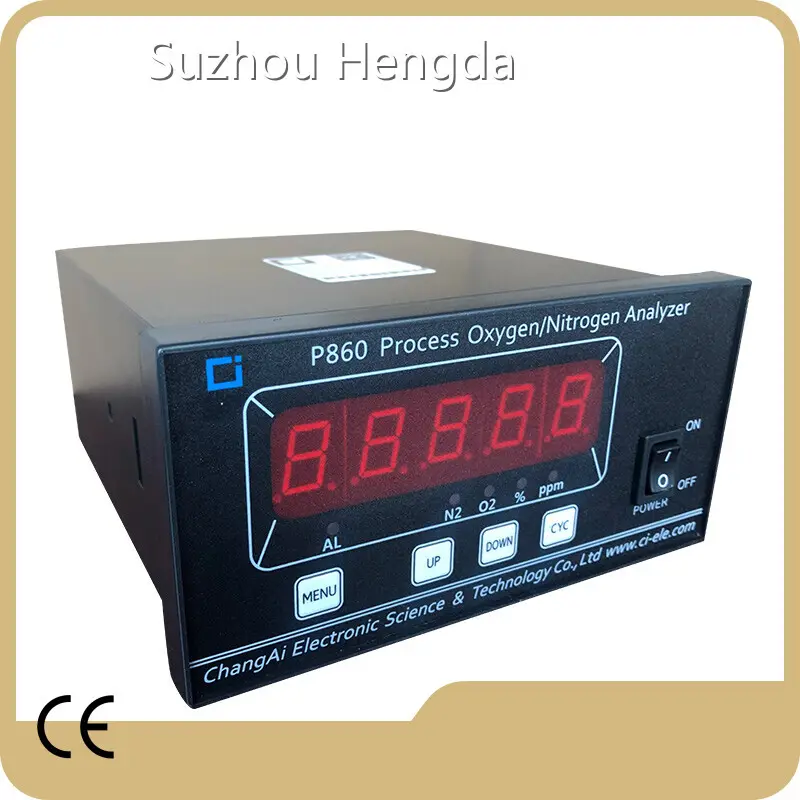

Monitor |
Five digital dynamic LED monitor, visible display window: 90mm*25mm |
|
Measure Range |
As table |
|
Measure Mode |
Air inflowing or convection diffusiong |
|
Sample Gas Flow |
150~300ml/mim |
|
Accuracy |
±2%F.S reading ≤20 seconds |
|
Ambient Humidity |
<80%RH |
|
Stability |
<±1%.FS(168h) |
|
Signal Output |
4-20mA |
|
Power Supply |
220±10% VAC, 50/60Hz, the power loss ≤6VA |
|
Sensor Life |
20000 hours at 25℃ and 1 atm |
|
Warranty |
12 months analyzer; 12 months sensor |
|
Weight |
1kg |
|
Appearance Dimension |
160mm*80mm*176mm(W*H*D) |
|
Opening Size |
151mm*75mm |
|
Item |
Model |
Measure Range |
|
1 |
P860-3O |
21.0%-1000ppm O2 |
|
2 |
P860-4O |
21.0%-100ppm O2 |
|
3 |
P860-5O |
21.0%-10ppm O2 |
|
4 |
P860-3N |
79.0%-99.9ppm N2 |
|
5 |
P860-4N |
79.0%-99.99ppm N2 |
|
6 |
P860-5N |
79.0%-99.999ppm N2 |
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Feature
• Suzhou Hengda introduces a group of experienced and professional talents. They are committed to providing technical support for the production of high-quality products which greatly improves corporate core competency.
• Good natural conditions and developed transportation network lay a good foundation for Suzhou Hengda's development.
• Suzhou Hengda has established a strict internal control system and a sound service system to provide quality products and efficient services for our customers.
• Suzhou Hengda's products are sold to many provinces and cities in China. Some are even exported to North America, Eastern Europe, Australia, Southeast Asia, and other regions.
Suzhou Hengda gains the recognition based on the high-quality machinery and sincere service. It is an honor for us to receive your contact and cooperate with all of you!
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
