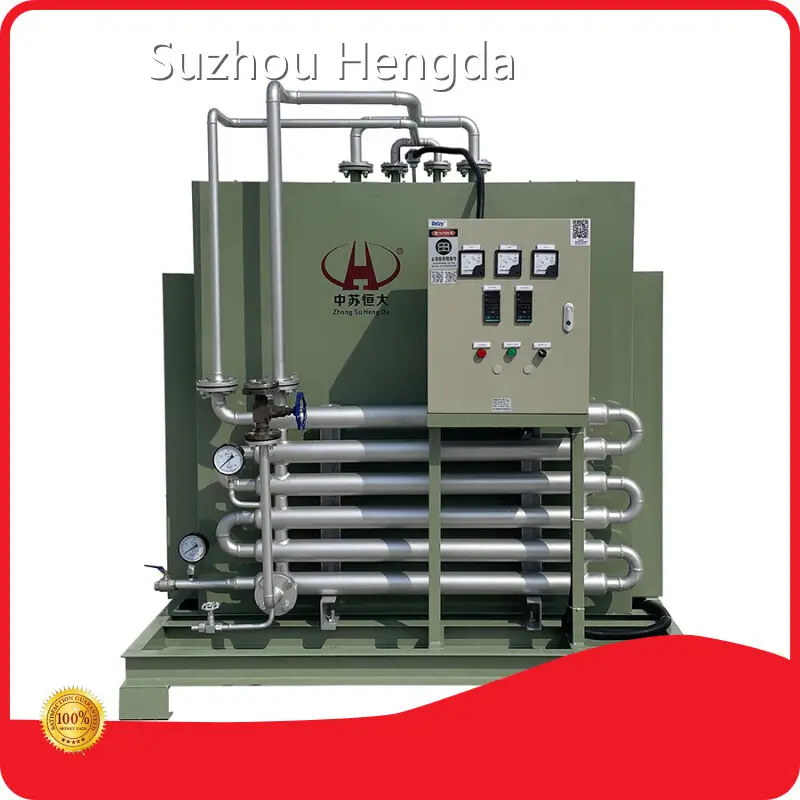

Hydrogen Production Unit by Zhongsu Hengda

Product details of the hydrogen production unit

Product Introduction

Zhongsu Hengda hydrogen production unit is manufactured at a quick rate due to the high efficiency of production equipment. As we strictly control the quality in every step, the product is of consistent quality. Suzhou Hengda Purification Equipment Co., Ltd's products are known worldwide and can be found in many places.

Product principle

1.2NH3 ----- 3H2 + N2

2.The HDAQ series ammonia decomposition hydrogen production plant uses liquid ammonia as raw material, and the gas is heated and decomposed under the action of catalyst to produce a mixture containing 75% hydrogen and 25% nitrogen. Pure hydrogen with purity of 99.999% can be further prepared by pressure swing adsorption method.

Structure and technology

U-shaped or plum-shaped monolithic cracking furnace tube makes the flow of each part of the furnace uniform, uniform life, with external wire structure to maximize the thermal efficiency.

The heat exchanger adopts the casing structure, and the large heat exchange area ensures the full utilization of thermal efficiency and long enough service life.

Unique material

The furnace is made of rare high-temperature heat-resistant alloy material, which guarantees a long service life in high temperature and highly corrosive environment. The heating element is made of nickel-chromium alloy with excellent mechanical properties at high temperature, and its surface load is determined in a reasonable range.

The core insulation material aluminum silicate fiber is formed by vacuum filtration method and the surface is strengthened more than five times, so it is light and has high strength; At the same time, its unique structure determines that the material coefficient is 15% lower than similar products.

SHOW DETAILS

7 (7)

8 (4)

9 (5)

10 (5)

Applications

Oil-free bearing, powder metallurgy, bright annealing, sintering of electronic materials, sintering of high temperature refractory materials, chemical industry, tin tank protection gas in float glass production, ceramic industry

PRODUCT INTRODUCTION

Technical feature

Hydrogen Production Unit by Zhongsu Hengda 10

.Simple principle, compact structure, small footprint, easy to operate

Hydrogen Production Unit by Zhongsu Hengda 11

Less investment, less energy consumption, low operating costs

Widely used to meet most of the needs of hydrogen use

Core components furnace body, furnace gall, electric heating wire optimization design, normal working conditions for three years warranty

IMG_6024

When used with the gas purification device, the protective gas with high purity can be obtained.

COMMON MODELS

Model No.	Capacity (Nm3/h)	Liuid Ammonia Consumption(kg/h)	Working Temperature(℃)	Catalyst	Voltage(V)	Power(KW)	Cooling Water Consumption(t/h)
AQ-5/FC-5	5	2	800-850℃	Conversion catalyst	220	6
AQ-10/FC-10	10	4	800-850℃	Conversion catalyst	380	12	0.2
AQ-20/FC-20	20	8	800-850℃	Conversion catalyst	380	24	0.5
AQ-30/FC-30	30	12	800-850℃	Conversion catalyst	380	36	1
AQ-40/FC-40	40	16	800-850℃	Conversion catalyst	380	50	1.5
AQ-50/FC-50	50	20	800-850℃	Conversion catalyst	380	70	2
AQ-60/FC-60	60	24	800-850℃	Conversion catalyst	380	75	2.5
AQ-70/FC-70	70	28	800-850℃	Conversion catalyst	380	80	3
AQ-80/FC-80	80	32	800-850℃	Conversion catalyst	380	85	3.5
AQ-100/FC-100	100	39	800-850℃	Conversion catalyst	380	95	4
AQ-150/FC-150	150	59	800-850℃	Conversion catalyst	380	140	5
AQ-200/FC-200	200	77	800-850℃	Conversion catalyst	380	180	6
AQ-300/FC-300	300	120	800-850℃	Conversion catalyst	380	360	7
AQ-500/FC-500	500	200	800-850℃	Conversion catalyst	380	550	9
