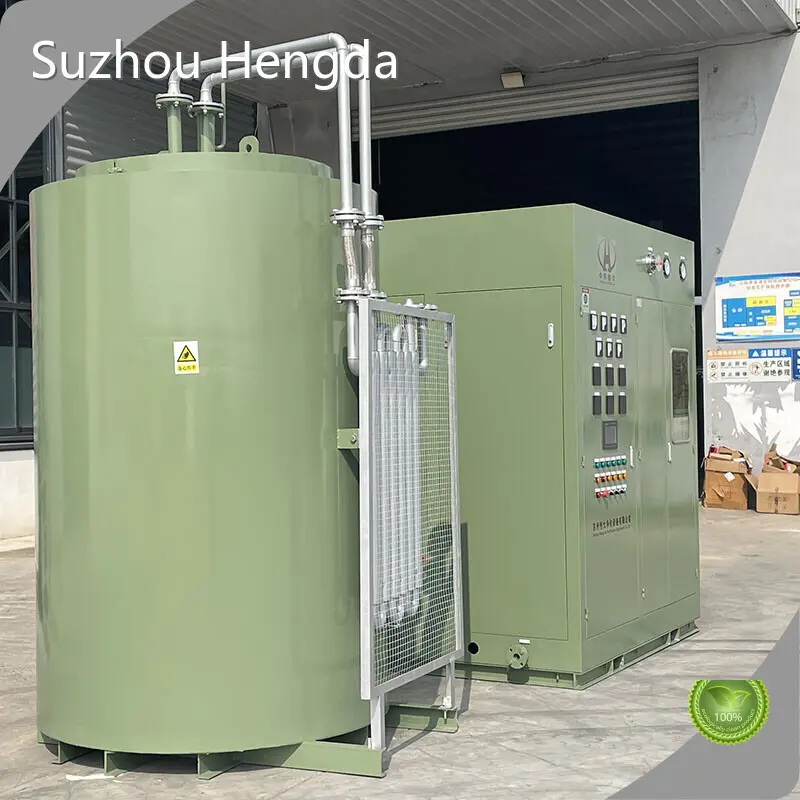

Hydrogen Purification Unit by Zhongsu Hengda
Product details of the hydrogen purification unit
Product Introduction
Zhongsu Hengda hydrogen purification unit complies with the strict production process. The product has been approved by creditable quality certificates. The product is gradually gaining more market share in the industry.
Product principle
1.2NH3 ----- 3H2 + N2
2.The HDAQ series ammonia decomposition hydrogen production plant uses liquid ammonia as raw material, and the gas is heated and decomposed under the action of catalyst to produce a mixture containing 75% hydrogen and 25% nitrogen. Pure hydrogen with purity of 99.999% can be further prepared by pressure swing adsorption method.
Structure and technology
U-shaped or plum-shaped monolithic cracking furnace tube makes the flow of each part of the furnace uniform, uniform life, with external wire structure to maximize the thermal efficiency.
The heat exchanger adopts the casing structure, and the large heat exchange area ensures the full utilization of thermal efficiency and long enough service life.
Unique material
The furnace is made of rare high-temperature heat-resistant alloy material, which guarantees a long service life in high temperature and highly corrosive environment. The heating element is made of nickel-chromium alloy with excellent mechanical properties at high temperature, and its surface load is determined in a reasonable range.
The core insulation material aluminum silicate fiber is formed by vacuum filtration method and the surface is strengthened more than five times, so it is light and has high strength; At the same time, its unique structure determines that the material coefficient is 15% lower than similar products.
SHOW DETAILS
Applications
Oil-free bearing, powder metallurgy, bright annealing, sintering of electronic materials, sintering of high temperature refractory materials, chemical industry, tin tank protection gas in float glass production, ceramic industry
PRODUCT INTRODUCTION
Technical feature
COMMON MODELS
|
Model No. |
Capacity (Nm3/h) |
Liuid Ammonia Consumption(kg/h) |
Working Temperature(℃) |
Catalyst |
Voltage(V) |
Power(KW) |
Cooling Water Consumption(t/h) |
|
AQ-5/FC-5 |
5 |
2 |
800-850℃ |
Conversion catalyst |
220 |
6 |
|
|
AQ-10/FC-10 |
10 |
4 |
800-850℃ |
Conversion catalyst |
380 |
12 |
0.2 |
|
AQ-20/FC-20 |
20 |
8 |
800-850℃ |
Conversion catalyst |
380 |
24 |
0.5 |
|
AQ-30/FC-30 |
30 |
12 |
800-850℃ |
Conversion catalyst |
380 |
36 |
1 |
|
AQ-40/FC-40 |
40 |
16 |
800-850℃ |
Conversion catalyst |
380 |
50 |
1.5 |
|
AQ-50/FC-50 |
50 |
20 |
800-850℃ |
Conversion catalyst |
380 |
70 |
2 |
|
AQ-60/FC-60 |
60 |
24 |
800-850℃ |
Conversion catalyst |
380 |
75 |
2.5 |
|
AQ-70/FC-70 |
70 |
28 |
800-850℃ |
Conversion catalyst |
380 |
80 |
3 |
|
AQ-80/FC-80 |
80 |
32 |
800-850℃ |
Conversion catalyst |
380 |
85 |
3.5 |
|
AQ-100/FC-100 |
100 |
39 |
800-850℃ |
Conversion catalyst |
380 |
95 |
4 |
|
AQ-150/FC-150 |
150 |
59 |
800-850℃ |
Conversion catalyst |
380 |
140 |
5 |
|
AQ-200/FC-200 |
200 |
77 |
800-850℃ |
Conversion catalyst |
380 |
180 |
6 |
|
AQ-300/FC-300 |
300 |
120 |
800-850℃ |
Conversion catalyst |
380 |
360 |
7 |
|
AQ-500/FC-500 |
500 |
200 |
800-850℃ |
Conversion catalyst |
380 |
550 |
9 |
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
