Medical Oxygen Gas Generator - - Zhongsu Hengda
PRODUCT DESCRIPTION
Zhongsu Hengda oxygen generator adopts advanced pressure swing adsorption technology.
Pressure swing adsorption oxygen production plant uses clean compressed air as raw material, uses the high-quality zeolite molecular sieve as adsorbent, under a certain pressure, to separate oxygen from the air after purified dry compressed air, pressure adsorption decompression desorption in the adsorbent. Because of the aerodynamic effect, the diffusion rate of nitrogen in the pores of zeolite molecular sieve is much higher than that of oxygen. Nitrogen is preferentially adsorbed by zeolite molecular sieve, and oxygen is enriched in the gas phase to form finished oxygen. and then by decompression to atmospheric pressure, adsorbent adsorbed nitrogen and other impurities, to achieve regeneration.

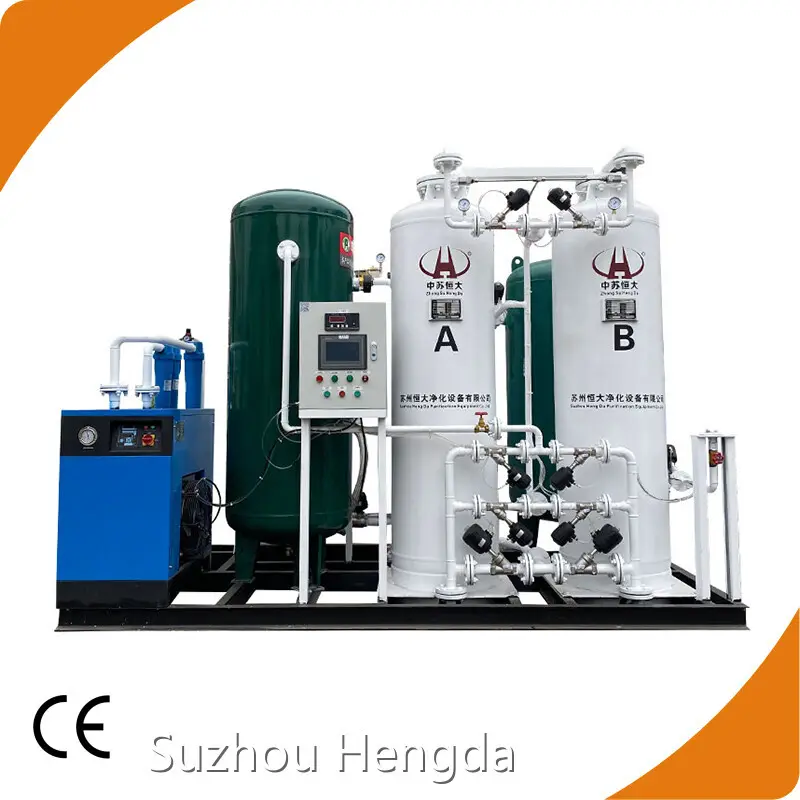

Generally, two adsorption towers are set up in the system, one tower absorbs oxygen, the other tower desorption regeneration, through PLC program controller to control the opening and closing of the pneumatic valve, so that the two towers alternate circulation, so as to obtain high purity oxygen.
Show details
Product parameters
|
Purity |
93±2% (Normal) |
|
O2 Capacity |
1-200Nm3/h |
|
Discharge O2 Pressure |
0-5.5 Bar (Normal) |
|
O2 Dew Point |
－40℃ (Normal) |
|
Operation |
Full automatic |
Product Introduction
ADVANTAGES AND FEATURES
APPLICATION INDUSTRY
Common models
| Model No. |
Capacity (Nm3/h) |
Air Material (Nm3/h) |
Power consumption (W) | Length x Width (mm/mm) |
| HDFO-5 | 5 | 50 | 800 | 1600x1200 |
| HDFO-10 | 10 | 100 | 800 | 1800x1500 |
| HDFO-20 | 20 | 200 | 800 | 2000x1600 |
| HDFO-30 | 30 | 300 | 800 | 2200x1800 |
| HDFO-40 | 40 | 400 | 800 | 2400x1800 |
| HDFO-50 | 50 | 500 | 800 | 2600x1800 |
| HDFO-60 | 60 | 600 | 800 | 2600x1800 |
| HDFO-80 | 80 | 800 | 800 | 2800x1800 |
| HDFO-100 | 100 | 1000 | 800 | 3500x2200 |
| HDFO-120 | 120 | 1200 | 800 | 3600x2200 |
| HDFO-150 | 150 | 1500 | 800 | 3800x2300 |
| HDFO-180 | 180 | 1800 | 800 | 4000x2300 |
| HDFO-200 | 200 | 2000 | 800 | 5200x2300 |
* Equipment can be customized according to customer needs
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Advantages
· Zhongsu Hengda medical oxygen gas generator is made using premium materials and comes in different design styles.
· A quality management system guarantees the quality of this product.
· Suzhou Hengda Purification Equipment Co., Ltd makes use of advanced technology and produces a variety of medical oxygen gas generator.
Company Features
· Suzhou Hengda Purification Equipment Co., Ltd is very professional in manufacturing medical oxygen gas generator, which is reliable among customers.
· The equipment of leading machines and advanced technology ensure the development, test and inspection of medical oxygen gas generator.
· We offer medical oxygen gas generator in all standards and sizes as required by our clients. Check it!
Application of the Product
Suzhou Hengda's medical oxygen gas generator is available in a wide range of applications.
Suzhou Hengda can provide customers with one-stop solutions of high quality, and meet customers' needs to the greatest extent.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
