Medical Oxygen Plant Manufacturer by Zhongsu Hengda
Product details of the medical oxygen plant manufacturer
Product Information
The production of Zhongsu Hengda medical oxygen plant manufacturer follows an extremely strict process during the design phase. Perfect quality assurance and managing system jointly assure the quality of this product. Suzhou Hengda Purification Equipment Co., Ltd adheres to the 'quality first, customers first' principle.
PRODUCT DESCRIPTION

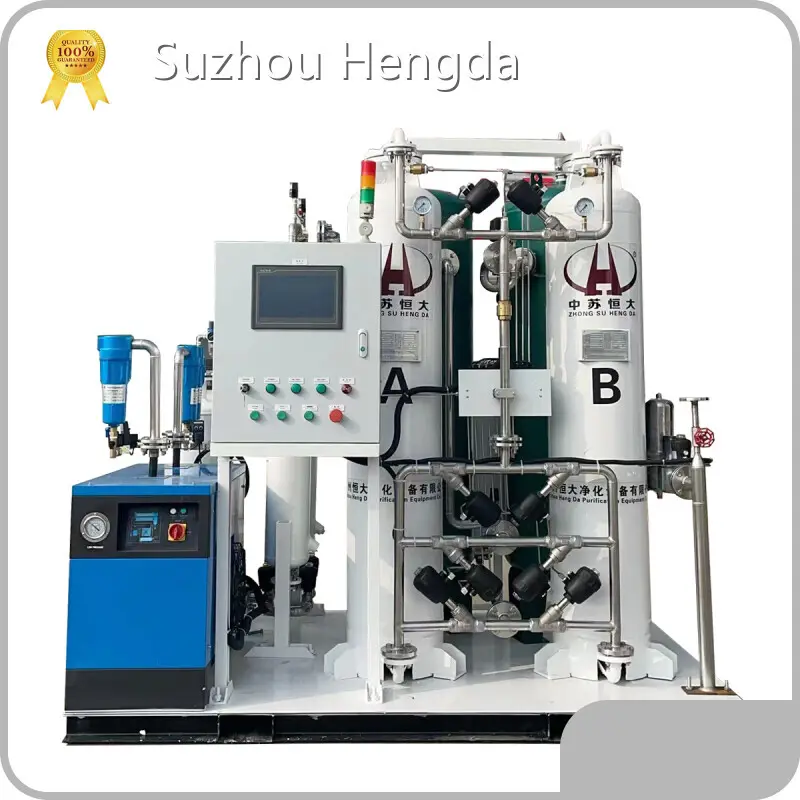

Medical molecular sieve oxygen generator is based on zeolite molecular sieve as adsorbent and using Press Swing Adsorption (PSA) to make medical oxygen (hereinafter referred to as oxygen maker), In the process of oxygen production, filter and purify air raw materials and finished product oxygen layer by layer. To ensure that the output of finished oxygen meet the requirements of medical technical indicators.
Medical molecular sieve oxygen generator is at room temperature and low pressure with air as raw material, the oxygen in the air (about 21%) directly separated by physical methods, so as to produce high purity medical oxygen, oxygen concentration is 93%±3%, which is characterized by oxygen production fast, safe, economic, convenient, easy to replace the past bottled oxygen and liquid oxygen, In recent years, it has been widely promoted and applied in various medical institutions in China.
Features: convenient, safe, reliable, energy saving
Moving air is the only source of high concentration oxygen. The use of built-in zeolite molecular sieve to separate oxygen from the air, output concentration of up to 90% of the pure oxygen. Because there is no chemical reaction, the machine in oxygen production neither combustion, oxidation, synthesis and other dangerous chemical reaction process, also does not produce other new flammable, explosive or toxic and harmful substances, just use physical separation method to separate the existing oxygen in the air from other gases. The safety and reliability of medical molecular sieve oxygen generator is incomparable to chemical oxygen or electrochemical oxygen production.
The charging pressure of the oxygen cylinder is up to 15MPa(150 atmospheres), and there is a potential explosion risk in the event of strong vibration and collision. An oxygen cylinder filled with oxygen is like a potential bomb, complicated to transport store and handle with great care, And the medical oxygen machine only when working with oxygen, and the highest working pressure is only 0.8MPa, no oxygen is produced when the machine is shut down, the pressure inside the oxygen machine and the ambient air pressure is equal, so safe and reliable.
|
Model |
Oxygen flow Nm³/h |
Suitable number of hospital beds(pcs) |
KwPower kw |
Dimensions(LxWxH),Unit: cm |
|
LM093-1 |
1 |
≈50 |
5.8 |
1800 x 1400 x 1800 |
|
LM093-3 |
3 |
≈100 |
7.6 |
2000 x 1400 x 1900 |
|
LM093-5 |
5 |
≈150 |
7.8 |
2000 x 1500 x 1900 |
|
LM093-10 |
10 |
≈300 |
16.7 |
2000 x 1500 x 2100 |
|
LM093-15 |
15 |
≈450 |
19.9 |
2500 x 1800 x 2350 |
|
LM093-20 |
20 |
≈600 |
33.5 |
2500 x 1800 x 2350 |
|
LM093-30 |
30 |
≈1000 |
38.9 |
2800 x 2000 x 2350 |
|
LM093-50 |
50 |
≈2000 |
58.5 |
3800 x 2200 x2750 |
|
LM093-60 |
60 |
≈2500 |
78.8 |
3800 x 2200 x 2850 |
|
LM093-70 |
70 |
≈3000 |
98 |
4500 x 2300 x 3100 |
|
LM093-80 |
80 |
≈3800 |
98 |
4500 x 2300 x 3100 |
The data listed in this table is based on 0.8Mpa raw material compressed air, 20 C ambient temperature, 100 meters above sea level and 80% relative humidity power requirement: 380V 3P, 220V 1P, 50HZ
Oxygen output pressure requirements: 0.4-0.5Mpa, when the oxygen pressure requirements are higher than 0.5Mpa, can be pressurized to the user's required pressure
Installation site requirements: The installation site is an indoor non-explosion-proof area with an ambient temperature of 3-45 ℃ and good ventilation
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
