Professional On Oxygen And Nitrogen Gas Generation Solution.
Nitrogen Air Separation Unit by Zhongsu Hengda
Company Advantages
· Zhongsu Hengda nitrogen air separation unit is designed and made as per the prevailing market norms and guidelines.
· The product is of highest quality and manufactured under strict quality control system.
· Through several years of operation, Suzhou Hengda Purification Equipment Co., Ltd has formed mature management system.
Product principle

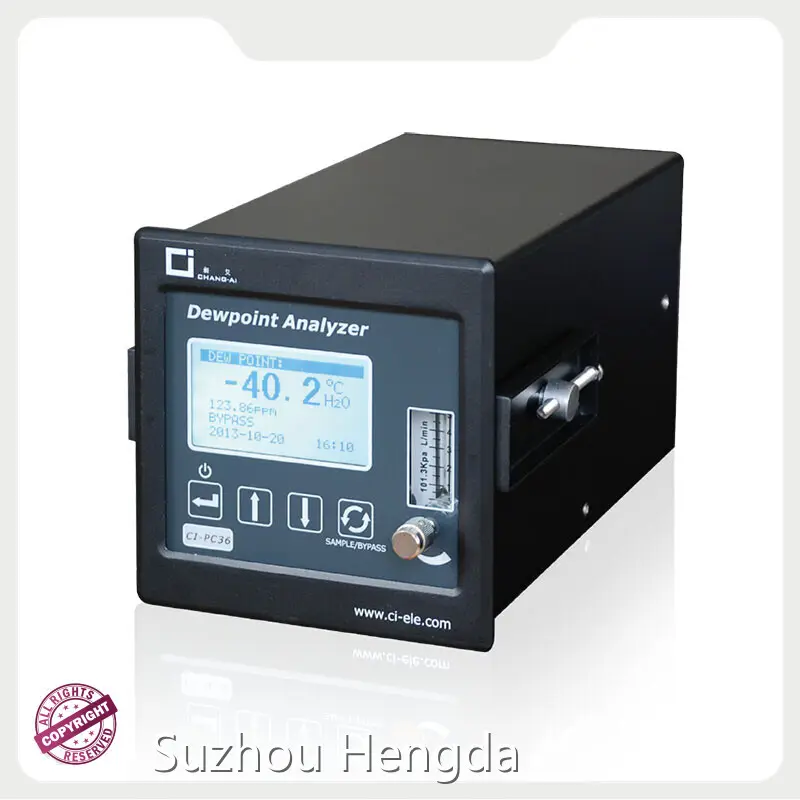

CI-PC36 dew point analyzer is an intelligent dew point analyzer with microprocessor as its core and ultra-thin alumina capacitive sensor as its measuring unit. It has the characteristics of high precision, good stability, comprehensive function and long service life.
|
Measure range |
Basic type : -60 - + 20℃ |
|
Standard type |
-80 - + 20℃ |
|
Extended type |
-100- + 20℃ |
|
Accuracy |
±3℃(-80- -60℃), ±2℃(-60 - + 20℃) |
|
Repeatability |
±0.5℃ |
|
Zero drift |
±1% FS/7d |
|
Range drift |
±1% FS/7d |
|
Response time : |
At the temperature of +20℃ and pressure of 1bar, the range reaches 63%[90%] |
|
-60 - -20℃ Td |
5s[10s] |
|
-20 - -60℃ Td |
45s[10min] |
|
Power supply |
85-264VA, 50/60Hz |
|
Environment temperature |
0-45℃ Environment Humidity: <90%RH |
|
Sample temperature |
0-50℃ |
|
Sample gas pressure |
Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
|
External control signal |
1 set, control signal: 9-28VDC(optional) |
|
Analog output |
Standard confiquration set of 4-20MA, 0-20mA and 0-10V can be set by menu |
|
Communication |
RS485 (standard) / RS232 (optional) |
|
Alarm outout |
2 sets |
|
Relay contact point capacit |
24VDC, 0, 0.2A |
|
Inlet and outlet |
1 / 4 inch NPT internal thread, standard 6.5 hose ioin |
|
Instrument size |
W*H*D = 144m*144mm*251mm |
|
Immnstallation hole size of instrument |
L*W = 136mmx136mm |
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Features
· As an internationally competitive enterprise, Suzhou Hengda Purification Equipment Co., Ltd owns a large factory to produce nitrogen air separation unit.
· nitrogen air separation unit is produced in strict accordance with international quality standards. The quality of nitrogen air separation unit complies with international standards.
· From the initial order to the delivery and pick-up, we ensure you always receive prompt attention and expert advice. Inquire!
Product Details
The specific details of nitrogen air separation unit are presented below.
Product Comparison
Compared with other products in the same category, nitrogen air separation unit has more advantages, specifically in the following aspects.
Enterprise Advantages
Suzhou Hengda has a group of R&D technical personnel with great technical abilities. We also have well-trained personnel engaged in after-sales service. They play a significant role in sustainable development.
Suzhou Hengda gives priority to customers and runs the business in good faith. We are devoted to providing quality services.
With the business philosophy of 'technological innovation, cooperation and win-win, integrity and efficiency, service first', our company sets up strict management standards and takes constant innovation, and is committed to becoming the most professional enterprise.
Our company was founded in After years' development, we have broadened our business scope and accumulated a wealth of production experience and professional technical knowledge.
Suzhou Hengda's products are mainly sold to domestic major cities and are exported to North America, Europe, Southeast Asia, and other foreign markets.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
