Oxygen Generator by Zhongsu Hengda
Product details of the oxygen generator
Product Overview
Our oxygen generator is rich in modern design and delicate production. oxygen generator is produced according to GB and IEC standards. Suzhou Hengda Purification Equipment Co., Ltd's pre-sales provide the most effective one-stop solution.
Product Information
Compared with peer products, our oxygen generator has more obvious advantages and they are reflected in the following aspects.
PRODUCT DESCRIPTION

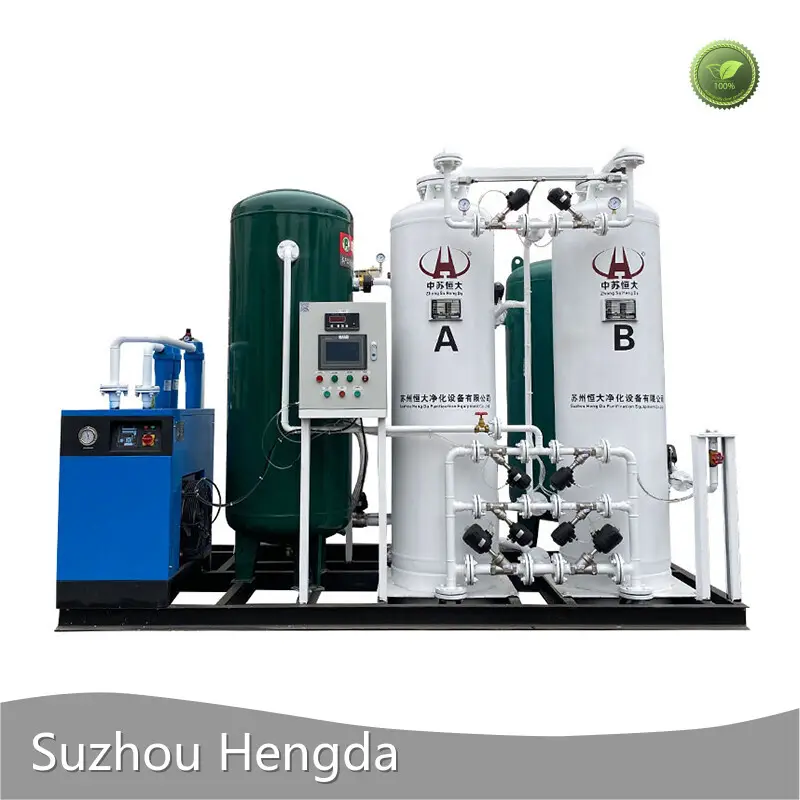

Zhongsu Hengda oxygen generator adopts advanced pressure swing adsorption technology.
Pressure swing adsorption oxygen production plant uses clean compressed air as raw material, uses the high-quality zeolite molecular sieve as adsorbent, under a certain pressure, to separate oxygen from the air after purified dry compressed air, pressure adsorption decompression desorption in the adsorbent. Because of the aerodynamic effect, the diffusion rate of nitrogen in the pores of zeolite molecular sieve is much higher than that of oxygen. Nitrogen is preferentially adsorbed by zeolite molecular sieve, and oxygen is enriched in the gas phase to form finished oxygen. and then by decompression to atmospheric pressure, adsorbent adsorbed nitrogen and other impurities, to achieve regeneration.
Generally, two adsorption towers are set up in the system, one tower absorbs oxygen, the other tower desorption regeneration, through PLC program controller to control the opening and closing of the pneumatic valve, so that the two towers alternate circulation, so as to obtain high purity oxygen.
Show details
Product parameters
|
Purity |
93±2% (Normal) |
|
O2 Capacity |
1-200Nm3/h |
|
Discharge O2 Pressure |
0-5.5 Bar (Normal) |
|
O2 Dew Point |
－40℃ (Normal) |
|
Operation |
Full automatic |
Product Introduction
ADVANTAGES AND FEATURES
APPLICATION INDUSTRY
Common models
| Model No. |
Capacity (Nm3/h) |
Air Material (Nm3/h) |
Power consumption (W) | Length x Width (mm/mm) |
| HDFO-5 | 5 | 50 | 800 | 1600x1200 |
| HDFO-10 | 10 | 100 | 800 | 1800x1500 |
| HDFO-20 | 20 | 200 | 800 | 2000x1600 |
| HDFO-30 | 30 | 300 | 800 | 2200x1800 |
| HDFO-40 | 40 | 400 | 800 | 2400x1800 |
| HDFO-50 | 50 | 500 | 800 | 2600x1800 |
| HDFO-60 | 60 | 600 | 800 | 2600x1800 |
| HDFO-80 | 80 | 800 | 800 | 2800x1800 |
| HDFO-100 | 100 | 1000 | 800 | 3500x2200 |
| HDFO-120 | 120 | 1200 | 800 | 3600x2200 |
| HDFO-150 | 150 | 1500 | 800 | 3800x2300 |
| HDFO-180 | 180 | 1800 | 800 | 4000x2300 |
| HDFO-200 | 200 | 2000 | 800 | 5200x2300 |
* Equipment can be customized according to customer needs
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
