Product details of the oxygen generator manufacturer
Product Description
Zhongsu Hengda oxygen generator manufacturer is manufactured using the finest raw material, which is procured from some of the most trustworthy and certified vendors in the industry. The quality check team adopts impeccable quality of testing instruments and system to make sure the best quality. The product shows dynamic in the market.
PRODUCT DESCRIPTION

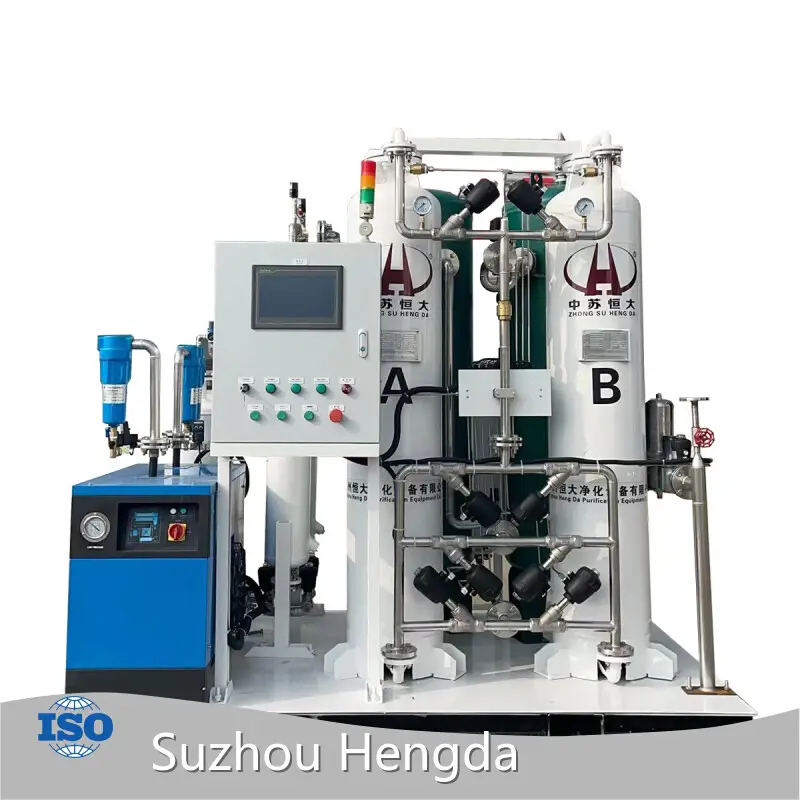

Medical molecular sieve oxygen generator is based on zeolite molecular sieve as adsorbent and using Press Swing Adsorption (PSA) to make medical oxygen (hereinafter referred to as oxygen maker), In the process of oxygen production, filter and purify air raw materials and finished product oxygen layer by layer. To ensure that the output of finished oxygen meet the requirements of medical technical indicators.
Medical molecular sieve oxygen generator is at room temperature and low pressure with air as raw material, the oxygen in the air (about 21%) directly separated by physical methods, so as to produce high purity medical oxygen, oxygen concentration is 93%±3%, which is characterized by oxygen production fast, safe, economic, convenient, easy to replace the past bottled oxygen and liquid oxygen, In recent years, it has been widely promoted and applied in various medical institutions in China.
Features: convenient, safe, reliable, energy saving
Moving air is the only source of high concentration oxygen. The use of built-in zeolite molecular sieve to separate oxygen from the air, output concentration of up to 90% of the pure oxygen. Because there is no chemical reaction, the machine in oxygen production neither combustion, oxidation, synthesis and other dangerous chemical reaction process, also does not produce other new flammable, explosive or toxic and harmful substances, just use physical separation method to separate the existing oxygen in the air from other gases. The safety and reliability of medical molecular sieve oxygen generator is incomparable to chemical oxygen or electrochemical oxygen production.
The charging pressure of the oxygen cylinder is up to 15MPa(150 atmospheres), and there is a potential explosion risk in the event of strong vibration and collision. An oxygen cylinder filled with oxygen is like a potential bomb, complicated to transport store and handle with great care, And the medical oxygen machine only when working with oxygen, and the highest working pressure is only 0.8MPa, no oxygen is produced when the machine is shut down, the pressure inside the oxygen machine and the ambient air pressure is equal, so safe and reliable.
|
Model |
Oxygen flow Nm³/h |
Suitable number of hospital beds(pcs) |
KwPower kw |
Dimensions(LxWxH),Unit: cm |
|
LM093-1 |
1 |
≈50 |
5.8 |
1800 x 1400 x 1800 |
|
LM093-3 |
3 |
≈100 |
7.6 |
2000 x 1400 x 1900 |
|
LM093-5 |
5 |
≈150 |
7.8 |
2000 x 1500 x 1900 |
|
LM093-10 |
10 |
≈300 |
16.7 |
2000 x 1500 x 2100 |
|
LM093-15 |
15 |
≈450 |
19.9 |
2500 x 1800 x 2350 |
|
LM093-20 |
20 |
≈600 |
33.5 |
2500 x 1800 x 2350 |
|
LM093-30 |
30 |
≈1000 |
38.9 |
2800 x 2000 x 2350 |
|
LM093-50 |
50 |
≈2000 |
58.5 |
3800 x 2200 x2750 |
|
LM093-60 |
60 |
≈2500 |
78.8 |
3800 x 2200 x 2850 |
|
LM093-70 |
70 |
≈3000 |
98 |
4500 x 2300 x 3100 |
|
LM093-80 |
80 |
≈3800 |
98 |
4500 x 2300 x 3100 |
The data listed in this table is based on 0.8Mpa raw material compressed air, 20 C ambient temperature, 100 meters above sea level and 80% relative humidity power requirement: 380V 3P, 220V 1P, 50HZ
Oxygen output pressure requirements: 0.4-0.5Mpa, when the oxygen pressure requirements are higher than 0.5Mpa, can be pressurized to the user's required pressure
Installation site requirements: The installation site is an indoor non-explosion-proof area with an ambient temperature of 3-45 ℃ and good ventilation
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Advantage
• Suzhou Hengda has a talents team consisting of senior industry experts, elites and R&D personnel. They provide strong technical support for our company.
• Suzhou Hengda was founded in After years of rapid development, we improve the production capability and comprehensive strength.
• Suzhou Hengda has obvious geographical advantages with great traffic convenience.
• Suzhou Hengda values the needs and complaints of consumers. We seek development in demand and solve problems in complaints. Moreover, we continuously take innovation and improvement and strive to create more and better services for consumers.
Suzhou Hengda's Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System are focused on safety, quality, and product type. If you want to know more about the products, please call us. We would provide professional and quality services.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
