Professional On Oxygen And Nitrogen Gas Generation Solution.
Oxygen Nitrogen Analyzer by Zhongsu Hengda
Company Advantages
· Zhongsu Hengda oxygen nitrogen analyzer has the advantages of good material and smooth outline.
· Clients can greatly benefit from the product for its stable performance, long functional life.
· To be a dominant oxygen nitrogen analyzer supplier, Zhongsu Hengda has been strictly carried out the quality assurance.
Product principle

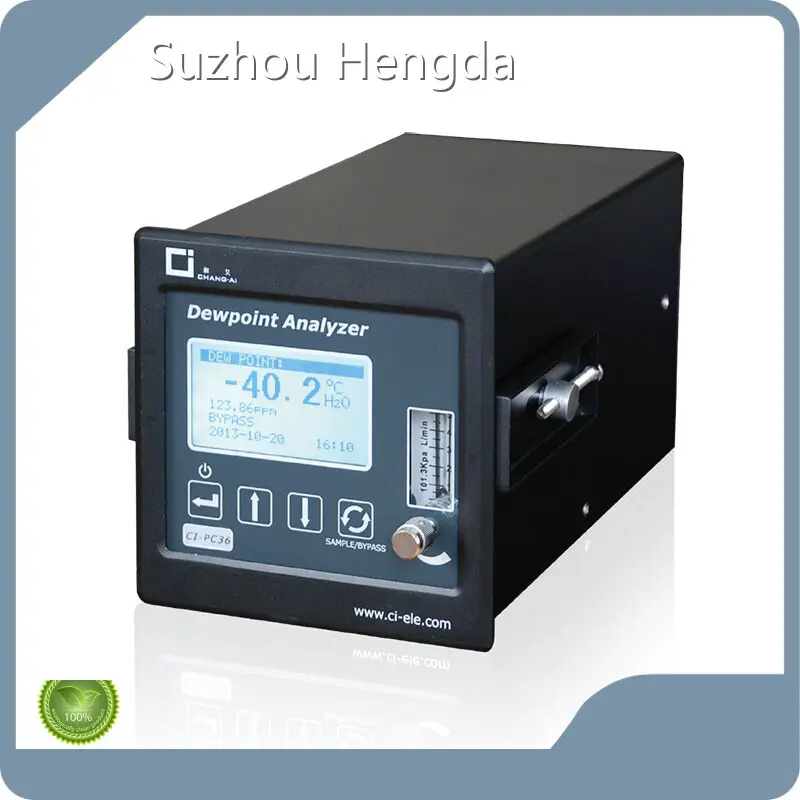

CI-PC36 dew point analyzer is an intelligent dew point analyzer with microprocessor as its core and ultra-thin alumina capacitive sensor as its measuring unit. It has the characteristics of high precision, good stability, comprehensive function and long service life.
|
Measure range |
Basic type : -60 - + 20℃ |
|
Standard type |
-80 - + 20℃ |
|
Extended type |
-100- + 20℃ |
|
Accuracy |
±3℃(-80- -60℃), ±2℃(-60 - + 20℃) |
|
Repeatability |
±0.5℃ |
|
Zero drift |
±1% FS/7d |
|
Range drift |
±1% FS/7d |
|
Response time : |
At the temperature of +20℃ and pressure of 1bar, the range reaches 63%[90%] |
|
-60 - -20℃ Td |
5s[10s] |
|
-20 - -60℃ Td |
45s[10min] |
|
Power supply |
85-264VA, 50/60Hz |
|
Environment temperature |
0-45℃ Environment Humidity: <90%RH |
|
Sample temperature |
0-50℃ |
|
Sample gas pressure |
Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
|
External control signal |
1 set, control signal: 9-28VDC(optional) |
|
Analog output |
Standard confiquration set of 4-20MA, 0-20mA and 0-10V can be set by menu |
|
Communication |
RS485 (standard) / RS232 (optional) |
|
Alarm outout |
2 sets |
|
Relay contact point capacit |
24VDC, 0, 0.2A |
|
Inlet and outlet |
1 / 4 inch NPT internal thread, standard 6.5 hose ioin |
|
Instrument size |
W*H*D = 144m*144mm*251mm |
|
Immnstallation hole size of instrument |
L*W = 136mmx136mm |
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Features
· Since establishment, Suzhou Hengda Purification Equipment Co., Ltd has grown incredibly over the years. Now we are a professional manufacturer of oxygen nitrogen analyzer.
· Zhongsu Hengda has introduced imported advanced machines to producing oxygen nitrogen analyzer.
· We pursue continuous improvement to adapt to the changing oxygen nitrogen analyzer market. We continue to invest in research and development, continue to set higher standards and expectations for ourselves, and strive to achieve more important milestones.
Product Details
Want to know more product information? We will provide you with detailed pictures and detailed content of oxygen nitrogen analyzer in the following section for your reference.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
