Product details of the oxygen nitrogen hydrogen analyzer
Product Information
oxygen nitrogen hydrogen analyzer from Suzhou Hengda Purification Equipment Co., Ltd is more energy saving and environmental friendly. The quality of oxygen nitrogen hydrogen analyzer is fine. Zhongsu Hengda is a professional oxygen nitrogen hydrogen analyzer maker which enjoys a better reputation among the customers.
Product principle

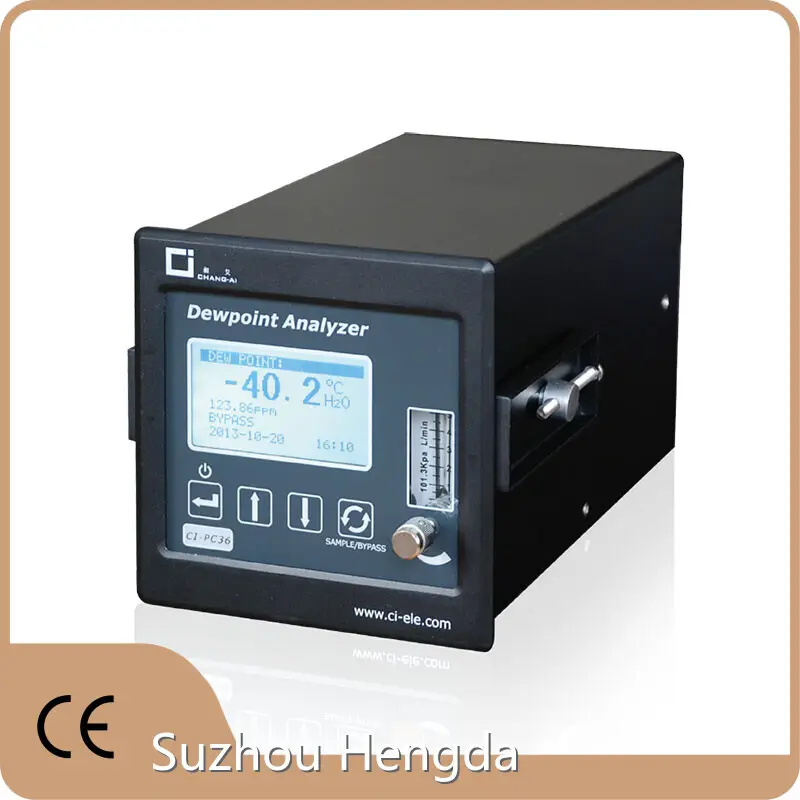

CI-PC36 dew point analyzer is an intelligent dew point analyzer with microprocessor as its core and ultra-thin alumina capacitive sensor as its measuring unit. It has the characteristics of high precision, good stability, comprehensive function and long service life.
|
Measure range |
Basic type : -60 - + 20℃ |
|
Standard type |
-80 - + 20℃ |
|
Extended type |
-100- + 20℃ |
|
Accuracy |
±3℃(-80- -60℃), ±2℃(-60 - + 20℃) |
|
Repeatability |
±0.5℃ |
|
Zero drift |
±1% FS/7d |
|
Range drift |
±1% FS/7d |
|
Response time : |
At the temperature of +20℃ and pressure of 1bar, the range reaches 63%[90%] |
|
-60 - -20℃ Td |
5s[10s] |
|
-20 - -60℃ Td |
45s[10min] |
|
Power supply |
85-264VA, 50/60Hz |
|
Environment temperature |
0-45℃ Environment Humidity: <90%RH |
|
Sample temperature |
0-50℃ |
|
Sample gas pressure |
Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
|
External control signal |
1 set, control signal: 9-28VDC(optional) |
|
Analog output |
Standard confiquration set of 4-20MA, 0-20mA and 0-10V can be set by menu |
|
Communication |
RS485 (standard) / RS232 (optional) |
|
Alarm outout |
2 sets |
|
Relay contact point capacit |
24VDC, 0, 0.2A |
|
Inlet and outlet |
1 / 4 inch NPT internal thread, standard 6.5 hose ioin |
|
Instrument size |
W*H*D = 144m*144mm*251mm |
|
Immnstallation hole size of instrument |
L*W = 136mmx136mm |
