Product details of the psa n2 generator
Product Description
psa n2 generator's design idea is based on the search for a high-quality life standard. We adopt statistical quality control technology to ensure stable product quality. This product is applicable due to its outstanding features in the industry.
PRODUCT DESCRIPTION
Zhongsu Hengda oxygen generator adopts advanced pressure swing adsorption technology.
Pressure swing adsorption oxygen production plant uses clean compressed air as raw material, uses the high-quality zeolite molecular sieve as adsorbent, under a certain pressure, to separate oxygen from the air after purified dry compressed air, pressure adsorption decompression desorption in the adsorbent. Because of the aerodynamic effect, the diffusion rate of nitrogen in the pores of zeolite molecular sieve is much higher than that of oxygen. Nitrogen is preferentially adsorbed by zeolite molecular sieve, and oxygen is enriched in the gas phase to form finished oxygen. and then by decompression to atmospheric pressure, adsorbent adsorbed nitrogen and other impurities, to achieve regeneration.

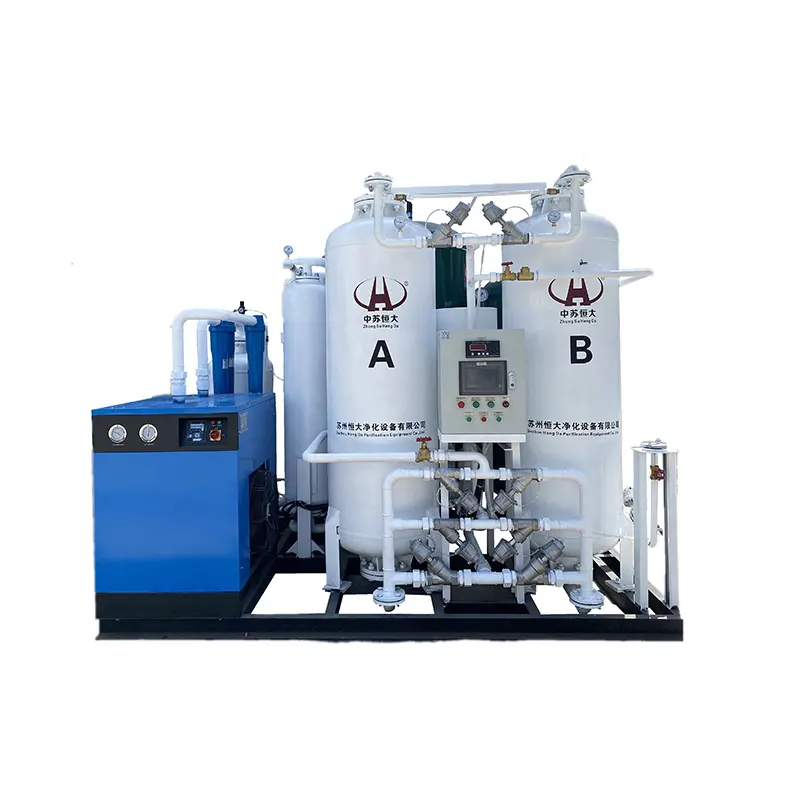

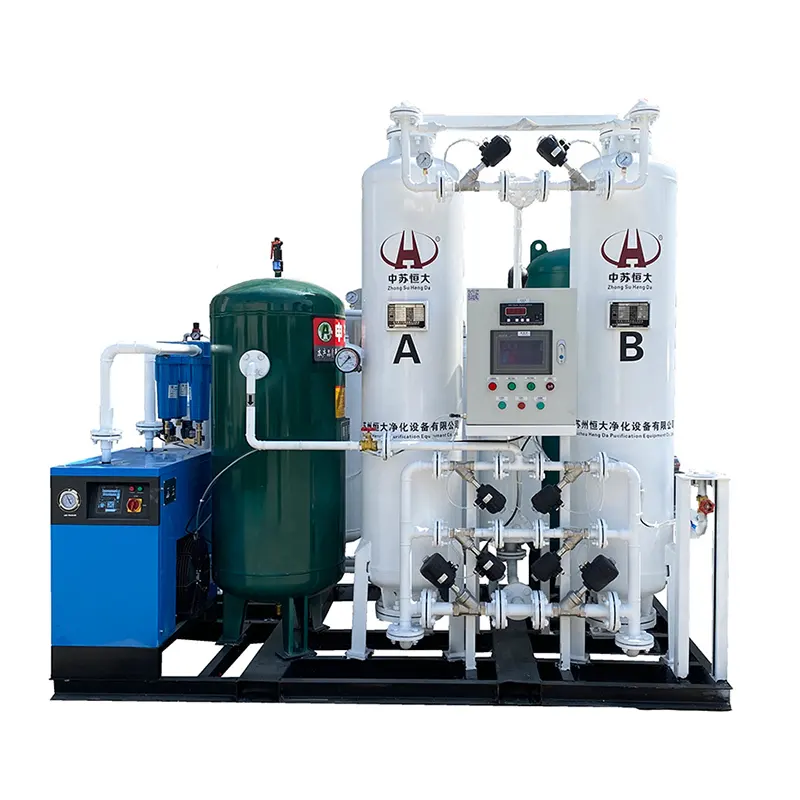

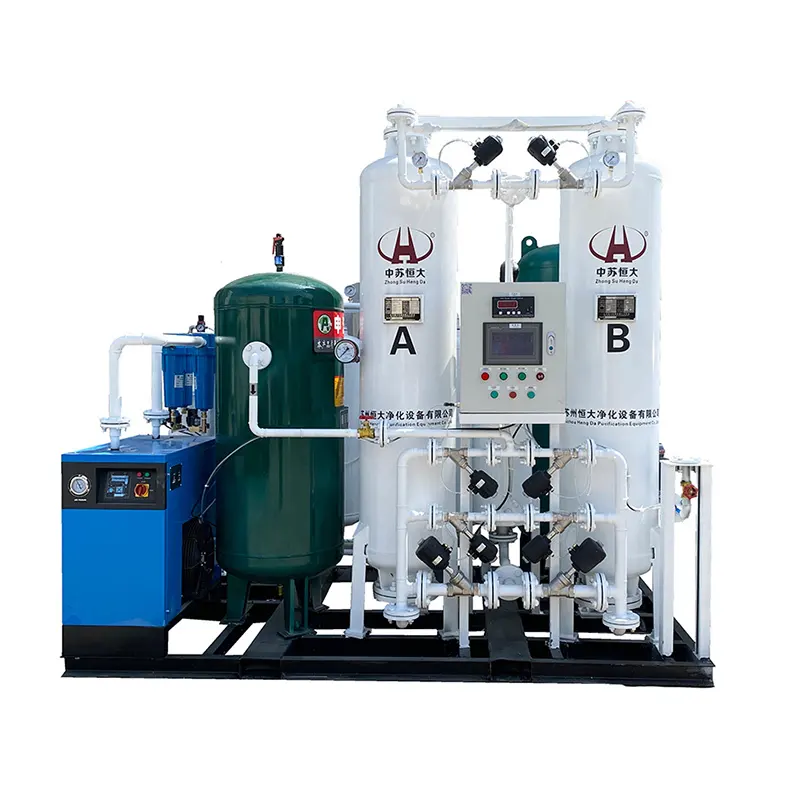

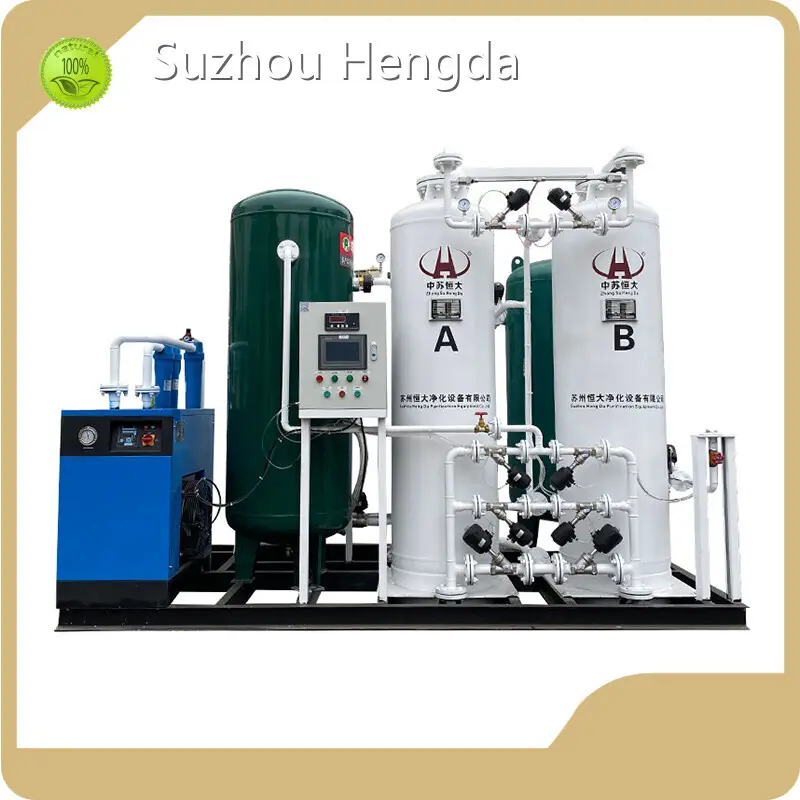

Generally, two adsorption towers are set up in the system, one tower absorbs oxygen, the other tower desorption regeneration, through PLC program controller to control the opening and closing of the pneumatic valve, so that the two towers alternate circulation, so as to obtain high purity oxygen.
Show details
Product parameters
|
Purity |
93±2% (Normal) |
|
O2 Capacity |
1-200Nm3/h |
|
Discharge O2 Pressure |
0-5.5 Bar (Normal) |
|
O2 Dew Point |
－40℃ (Normal) |
|
Operation |
Full automatic |
Product Introduction
ADVANTAGES AND FEATURES
APPLICATION INDUSTRY
Common models
| Model No. |
Capacity (Nm3/h) |
Air Material (Nm3/h) |
Power consumption (W) | Length x Width (mm/mm) |
| HDFO-5 | 5 | 50 | 800 | 1600x1200 |
| HDFO-10 | 10 | 100 | 800 | 1800x1500 |
| HDFO-20 | 20 | 200 | 800 | 2000x1600 |
| HDFO-30 | 30 | 300 | 800 | 2200x1800 |
| HDFO-40 | 40 | 400 | 800 | 2400x1800 |
| HDFO-50 | 50 | 500 | 800 | 2600x1800 |
| HDFO-60 | 60 | 600 | 800 | 2600x1800 |
| HDFO-80 | 80 | 800 | 800 | 2800x1800 |
| HDFO-100 | 100 | 1000 | 800 | 3500x2200 |
| HDFO-120 | 120 | 1200 | 800 | 3600x2200 |
| HDFO-150 | 150 | 1500 | 800 | 3800x2300 |
| HDFO-180 | 180 | 1800 | 800 | 4000x2300 |
| HDFO-200 | 200 | 2000 | 800 | 5200x2300 |
* Equipment can be customized according to customer needs
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Advantage
• It has been years since our company was built in We not only have professional R&D and production capacity, but also lead the industry in terms of technology and scale.
• The products that we provide are not only sold well to the domestic market, but also to some countries and regions like Europe, North America and Australia. And the products are favored by lots of customers overseas.
• Suzhou Hengda has a professional team with experienced team members. Besides, we introduce international advanced production concepts and models to promote corporate development.
• Unique geographical advantages and abundant social resources create good conditions for Suzhou Hengda's development.
For customization, please contact Suzhou Hengda and provide relevant information. We will give you the quotation as soon as possible.
