Professional On Oxygen And Nitrogen Gas Generation Solution.
Psa Nitrogen Gas Plant by Zhongsu Hengda
Product details of the psa nitrogen gas plant
Product Description
Zhongsu Hengda psa nitrogen gas plant is made from high grade material and is endowed with the latest features. Zhongsu Hengda strives forward to ensure the high quality of this product. Strong strength of Zhongsu Hengda ensures the quality of the entire company.
Product principle

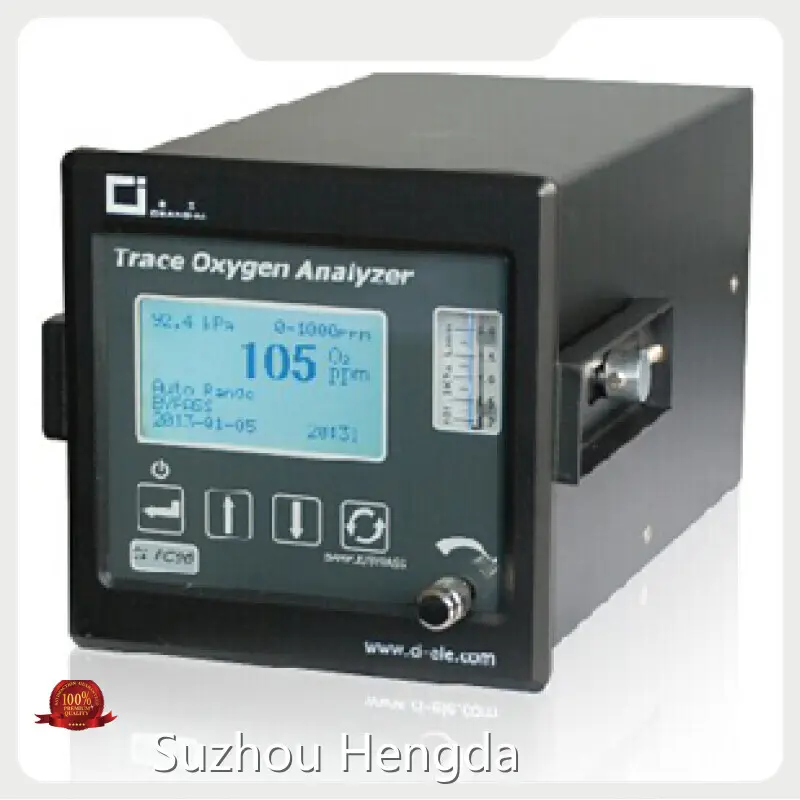

CI-PC96 is a micro-oxygen analyzer, which is an intelligent analyzer based on microprocessor. The sensor used in this system is a fuel cell oxygen sensor, which can measure 0-25% oxygen concentration, but in the environment of 0-1000ppm oxygen concentration, the measurement is the best.
|
Measure range |
0-10/100/1000ppm/1 %/25 % O2 |
|
Sensor principle |
Fuel cell type |
|
Accuracy |
0.01-9.99ppm O2±5% FS |
|
10.0-99.9ppm O2±3% FS |
|
|
100-1000ppm O2±5% FS |
|
|
Repeatability |
0.01-9.99ppm O2.5±5% FS |
|
10.0-99.9ppm O2±1.5% FS |
|
|
100-1000ppm O2±1% FS |
|
|
Stability |
0.01-9.99ppm O2.5±5% FS/7d |
|
10.0-99.9ppm O2±1.5% FS/7d |
|
|
100-1000ppm O2±1% FS/7d |
|
|
Response time |
T90<60s (25℃ ) |
|
Switch output |
2 sets, Relay contact point capacity: 24V DC, 0.2A |
|
Power supply |
CL-PC96 : 85- 264VAC 50/60Hz |
|
CI-PC961 : 24VDC, Power consumption less than 20VA |
|
|
Communication |
RS485 (standard) / RS232 ( standard ) |
|
Environment temperature |
0-45℃ Environment Humidity: <80% RH |
|
Sample gas pressure |
Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
|
Analyzer size |
Cl-PC96: L*W*D = 144mm*144mm*251mm |
|
Cl-PC961: L*W*D = 144mm*144mm*190mm |
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Feature
• Suzhou Hengda has experienced the laborious development of years unconsciously. During these years, we have constantly pursued our dreams and have achieved self-breakthrough.
• Under the leadership of high-quality leaders, our company integrates our own talents and relies on the help of external talents. It lays a solid guarantee for rapidly improving our overall strength.
• Based on the joint efforts of all employees, Suzhou Hengda's Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System are sold well in major cities in China and also exported to multiple countries and regions such as the Middle East, South Asia, Australia, Eastern Europe, North America, and South America.
• Our company's geographical position is excellent. Therefore, we are provided with good natural conditions, developed communication and convenient transportation.
Thanks for visiting. If you have any questions about Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System displayed on the page, please contact Suzhou Hengda.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
