Professional On Oxygen And Nitrogen Gas Generation Solution.
Psa Nitrogen Gas Plant Zhongsu Hengda,
Product details of the psa nitrogen gas plant
Product Introduction
Zhongsu Hengda psa nitrogen gas plant is made by our skillful and experienced professionals. We make use of guaranteed raw material that is procured for trusted vendors to guarantee the quality of this product. Suzhou Hengda Purification Equipment Co., Ltd follows the standard way to strengthen the administration of enterprises.
PRODUCT DESCRIPTION
Zhongsu Hengda oxygen generator adopts advanced pressure swing adsorption technology.
Pressure swing adsorption oxygen production plant uses clean compressed air as raw material, uses the high-quality zeolite molecular sieve as adsorbent, under a certain pressure, to separate oxygen from the air after purified dry compressed air, pressure adsorption decompression desorption in the adsorbent. Because of the aerodynamic effect, the diffusion rate of nitrogen in the pores of zeolite molecular sieve is much higher than that of oxygen. Nitrogen is preferentially adsorbed by zeolite molecular sieve, and oxygen is enriched in the gas phase to form finished oxygen. and then by decompression to atmospheric pressure, adsorbent adsorbed nitrogen and other impurities, to achieve regeneration.

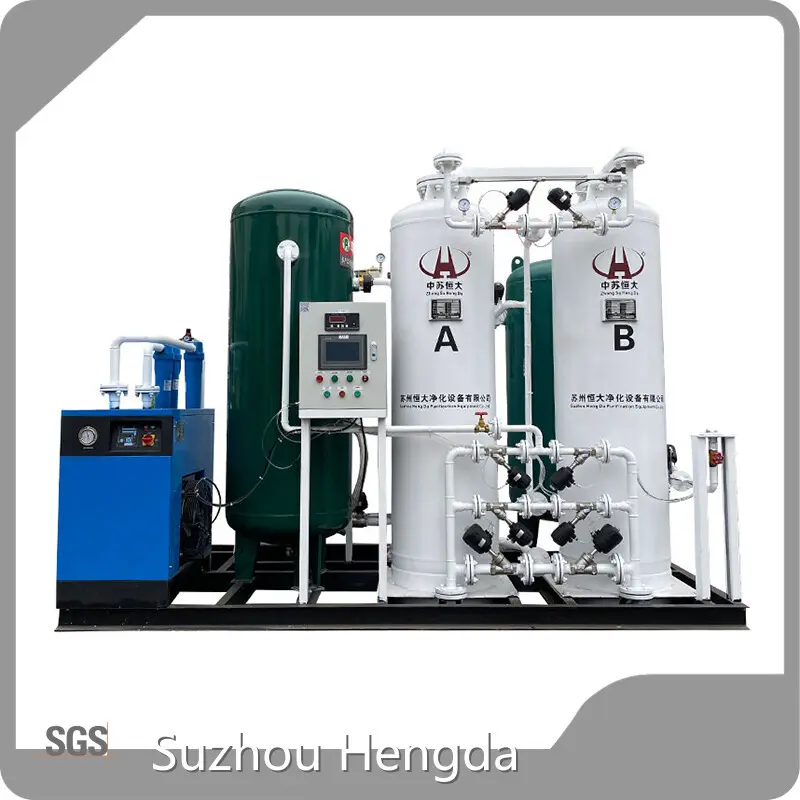

Generally, two adsorption towers are set up in the system, one tower absorbs oxygen, the other tower desorption regeneration, through PLC program controller to control the opening and closing of the pneumatic valve, so that the two towers alternate circulation, so as to obtain high purity oxygen.
Show details
Product parameters
|
Purity |
93±2% (Normal) |
|
O2 Capacity |
1-200Nm3/h |
|
Discharge O2 Pressure |
0-5.5 Bar (Normal) |
|
O2 Dew Point |
－40℃ (Normal) |
|
Operation |
Full automatic |
Product Introduction
ADVANTAGES AND FEATURES
APPLICATION INDUSTRY
Common models
| Model No. |
Capacity (Nm3/h) |
Air Material (Nm3/h) |
Power consumption (W) | Length x Width (mm/mm) |
| HDFO-5 | 5 | 50 | 800 | 1600x1200 |
| HDFO-10 | 10 | 100 | 800 | 1800x1500 |
| HDFO-20 | 20 | 200 | 800 | 2000x1600 |
| HDFO-30 | 30 | 300 | 800 | 2200x1800 |
| HDFO-40 | 40 | 400 | 800 | 2400x1800 |
| HDFO-50 | 50 | 500 | 800 | 2600x1800 |
| HDFO-60 | 60 | 600 | 800 | 2600x1800 |
| HDFO-80 | 80 | 800 | 800 | 2800x1800 |
| HDFO-100 | 100 | 1000 | 800 | 3500x2200 |
| HDFO-120 | 120 | 1200 | 800 | 3600x2200 |
| HDFO-150 | 150 | 1500 | 800 | 3800x2300 |
| HDFO-180 | 180 | 1800 | 800 | 4000x2300 |
| HDFO-200 | 200 | 2000 | 800 | 5200x2300 |
* Equipment can be customized according to customer needs
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Advantage
• Suzhou Hengda has a group of employees who have been engaged in the production of Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System for many years. This provides a strong guarantee for the product quality.
• After years of development, Suzhou Hengda has a mature management model and advanced production technology.
• Suzhou Hengda's Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System are well received by the domestic and international market. And the sales volume is increasing year by year.
Don't forget to contact us to order.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
