Professional On Oxygen And Nitrogen Gas Generation Solution.
Psa Nitrogen Generation System - - Zhongsu Hengda-1
Product details of the psa nitrogen generation system
Product Information
The material of Zhongsu Hengda psa nitrogen generation system undergoes unusual selection from suppliers. With the world’s advanced automatic production line and computer detection equipment, the quality of this product is guaranteed. A closely spaced international sales network ensures qualified customer service of Suzhou Hengda Purification Equipment Co., Ltd.
Product principle

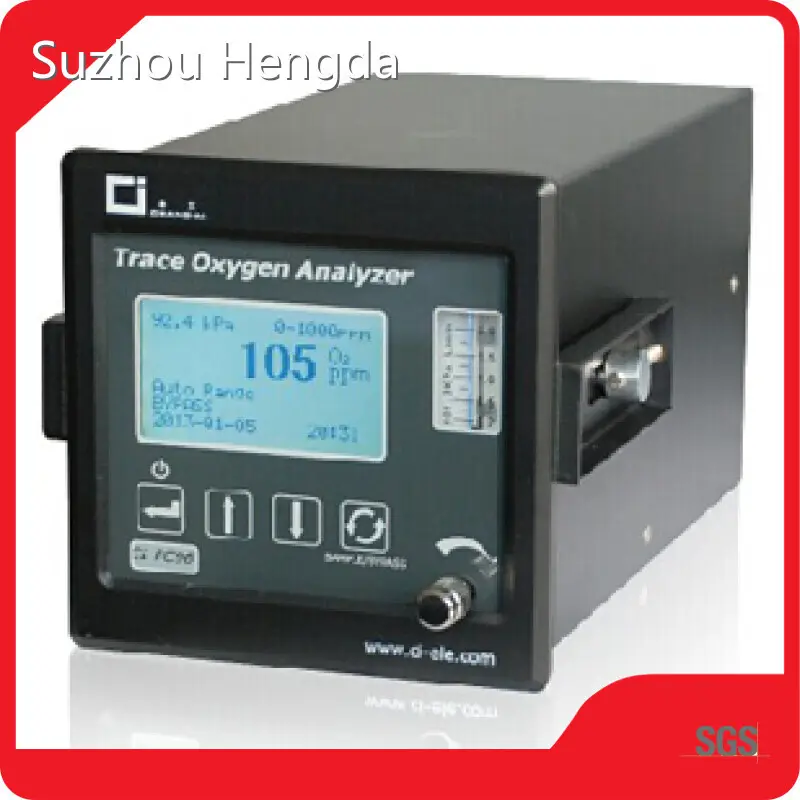

CI-PC96 is a micro-oxygen analyzer, which is an intelligent analyzer based on microprocessor. The sensor used in this system is a fuel cell oxygen sensor, which can measure 0-25% oxygen concentration, but in the environment of 0-1000ppm oxygen concentration, the measurement is the best.
|
Measure range |
0-10/100/1000ppm/1 %/25 % O2 |
|
Sensor principle |
Fuel cell type |
|
Accuracy |
0.01-9.99ppm O2±5% FS |
|
10.0-99.9ppm O2±3% FS |
|
|
100-1000ppm O2±5% FS |
|
|
Repeatability |
0.01-9.99ppm O2.5±5% FS |
|
10.0-99.9ppm O2±1.5% FS |
|
|
100-1000ppm O2±1% FS |
|
|
Stability |
0.01-9.99ppm O2.5±5% FS/7d |
|
10.0-99.9ppm O2±1.5% FS/7d |
|
|
100-1000ppm O2±1% FS/7d |
|
|
Response time |
T90<60s (25℃ ) |
|
Switch output |
2 sets, Relay contact point capacity: 24V DC, 0.2A |
|
Power supply |
CL-PC96 : 85- 264VAC 50/60Hz |
|
CI-PC961 : 24VDC, Power consumption less than 20VA |
|
|
Communication |
RS485 (standard) / RS232 ( standard ) |
|
Environment temperature |
0-45℃ Environment Humidity: <80% RH |
|
Sample gas pressure |
Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
|
Analyzer size |
Cl-PC96: L*W*D = 144mm*144mm*251mm |
|
Cl-PC961: L*W*D = 144mm*144mm*190mm |
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Feature
• Our team is a solid foundation for our company's development. There are professional talents in R&D and management as well as production personnel in the team. And they are passionate and united, with high work efficiency.
• Since the beginning in our company has accumulated a large amount of production experience after the development for years.
• Good geographic location, excellent traffic conditions, and telecommunications make contribution to Suzhou Hengda's sustainable development.
Suzhou Hengda is a manufacturer specializing in the production of Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System. The products are cost-effective with high quality and favorable price. Feel free to call us for consulting or business talk.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
