Professional On Oxygen And Nitrogen Gas Generation Solution.

Psa Type Nitrogen Generator by Zhongsu Hengda

Product details of the psa type nitrogen generator

Product Introduction

As Zhongsu Hengda psa type nitrogen generator is made of high materials, it meets the international standards. The suitability, adequacy, and effectiveness of the quality management system shall be continually improved to ensure its quality. Suzhou Hengda Purification Equipment Co., Ltd has a large-scale standardized psa type nitrogen generator production base covering an area of thousands of square meters.

Product principle

1.2NH3 ----- 3H2 + N2

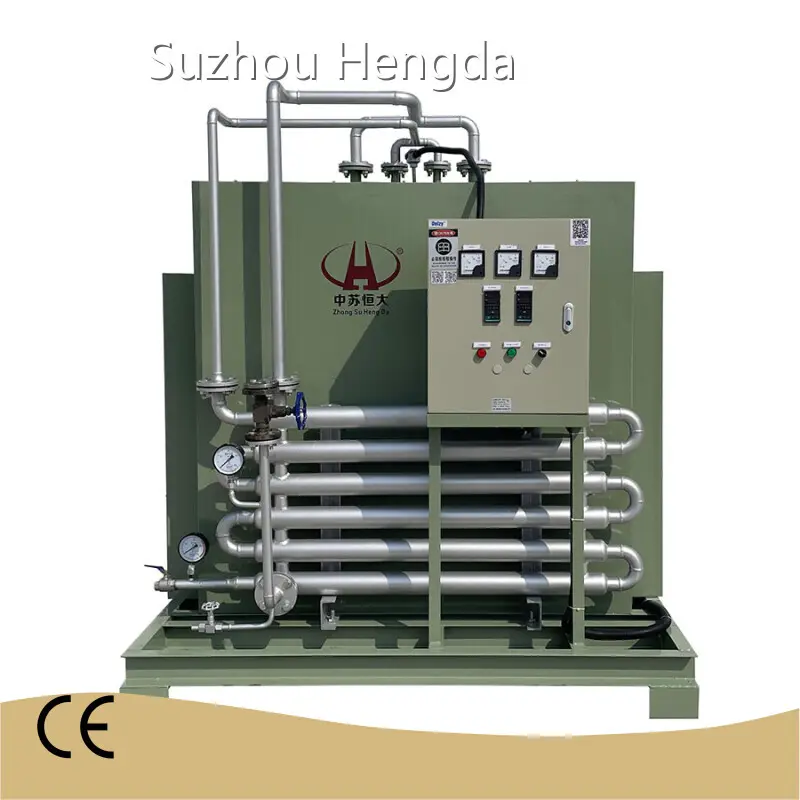

2.The HDAQ series ammonia decomposition hydrogen production plant uses liquid ammonia as raw material, and the gas is heated and decomposed under the action of catalyst to produce a mixture containing 75% hydrogen and 25% nitrogen. Pure hydrogen with purity of 99.999% can be further prepared by pressure swing adsorption method.

Structure and technology

U-shaped or plum-shaped monolithic cracking furnace tube makes the flow of each part of the furnace uniform, uniform life, with external wire structure to maximize the thermal efficiency.

The heat exchanger adopts the casing structure, and the large heat exchange area ensures the full utilization of thermal efficiency and long enough service life.

Unique material

The furnace is made of rare high-temperature heat-resistant alloy material, which guarantees a long service life in high temperature and highly corrosive environment. The heating element is made of nickel-chromium alloy with excellent mechanical properties at high temperature, and its surface load is determined in a reasonable range.

The core insulation material aluminum silicate fiber is formed by vacuum filtration method and the surface is strengthened more than five times, so it is light and has high strength; At the same time, its unique structure determines that the material coefficient is 15% lower than similar products.

SHOW DETAILS

7 (7)

8 (4)

9 (5)

10 (5)

Applications

Oil-free bearing, powder metallurgy, bright annealing, sintering of electronic materials, sintering of high temperature refractory materials, chemical industry, tin tank protection gas in float glass production, ceramic industry

PRODUCT INTRODUCTION

Technical feature

Psa Type Nitrogen Generator by Zhongsu Hengda 10

.Simple principle, compact structure, small footprint, easy to operate

Psa Type Nitrogen Generator by Zhongsu Hengda 11

Less investment, less energy consumption, low operating costs

Widely used to meet most of the needs of hydrogen use

Core components furnace body, furnace gall, electric heating wire optimization design, normal working conditions for three years warranty

IMG_6024

When used with the gas purification device, the protective gas with high purity can be obtained.

COMMON MODELS

Model No.	Capacity (Nm3/h)	Liuid Ammonia Consumption(kg/h)	Working Temperature(℃)	Catalyst	Voltage(V)	Power(KW)	Cooling Water Consumption(t/h)
AQ-5/FC-5	5	2	800-850℃	Conversion catalyst	220	6
AQ-10/FC-10	10	4	800-850℃	Conversion catalyst	380	12	0.2
AQ-20/FC-20	20	8	800-850℃	Conversion catalyst	380	24	0.5
AQ-30/FC-30	30	12	800-850℃	Conversion catalyst	380	36	1
AQ-40/FC-40	40	16	800-850℃	Conversion catalyst	380	50	1.5
AQ-50/FC-50	50	20	800-850℃	Conversion catalyst	380	70	2
AQ-60/FC-60	60	24	800-850℃	Conversion catalyst	380	75	2.5
AQ-70/FC-70	70	28	800-850℃	Conversion catalyst	380	80	3
AQ-80/FC-80	80	32	800-850℃	Conversion catalyst	380	85	3.5
AQ-100/FC-100	100	39	800-850℃	Conversion catalyst	380	95	4
AQ-150/FC-150	150	59	800-850℃	Conversion catalyst	380	140	5
AQ-200/FC-200	200	77	800-850℃	Conversion catalyst	380	180	6
AQ-300/FC-300	300	120	800-850℃	Conversion catalyst	380	360	7
AQ-500/FC-500	500	200	800-850℃	Conversion catalyst	380	550	9

USER EVALUATE

Psa Type Nitrogen Generator by Zhongsu Hengda 15

Industry experience

Having been in the industry for years, we know the market situation and industry requirements more clearly than most manufacturers.

Psa Type Nitrogen Generator by Zhongsu Hengda 16

Market area

We have accumulated extensive knowledge about the quality standards as well as market needs of thesecountries.

Psa Type Nitrogen Generator by Zhongsu Hengda 17

Team introduction

That is our highly-qualified employees. We have R&D experts, designers, QC professionals, and other highly qualified employees.

Psa Type Nitrogen Generator by Zhongsu Hengda 18

Product advantages

They outperform their competitors when it comes to durability and performance, deeply trusted by both domestic andforeign customers.

FAQ

The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.

How to get a prompt quotation?

When you send us inquiry, please kindly tell us the below technical information.

1) O2/N2/H2 Flow rate: ____Nm3/h

2) O2/N2/H2 Purity: ____%

3) O2/N2/H2 Discharge pressure: ____Bar

4) Voltages and Frequency: _____V/PH/HZ

5) Application or use for which industry.

We will recommend the most suitable equipment for you according to your needs.

How long is your delivery time?

Generally it is 10-50 working days depending on your order.

What is the terms of payment?

T/T, L/C, etc.

What is the standard of package?

he equipment is packed in wooden cases of export standard

Do you accept OEM business?

Yes, we are OEM supplier.

What kind of certificate you have ?

We have ISO9001, ISO13485,CE,SGS

Do you have similar customer cases?

Our equipment is used in a wide range of industries and has rich customer cases.You can tell me the application industry and country of the device, and we will provide you with cases.

How to install the equipment after purchase？

You can choose the remote video guide of the engineer or on-site installation.

What if there is a after-sales problem？

Hengda provide guarantees for the equipment in 12 months. And out of the warranty period, we continue to provide service.

Company Feature

• Our company is enjoying a superior location with convenient land transportation. Therefore, it provides advantages for outward sales.
• Over years since the inception in our company has been constantly tested by the outside world. We have seized the opportunity and spared every effort to make breakthroughs. At present, we have an important position in the market.
• Suzhou Hengda constructs a comprehensive sales network by actively developing sales channels. Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System are sold to multiple domestic provinces and cities as well as East Asia, South Asia, and other regions.
You can get new Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System samples for free, if you purchase in bulk. For more information, please contact Suzhou Hengda.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
