Professional On Oxygen And Nitrogen Gas Generation Solution.
Small Air Separation Unit Zhongsu Hengda
Product details of the small air separation unit
Product Information
Zhongsu Hengda small air separation unit has an appealing design with a novel structure. The product distinguishes itself from competitors with long-lasting performance and longer service life. Zhongsu Hengda has been attracting more and more customers since the development of mature sales network.
Product principle

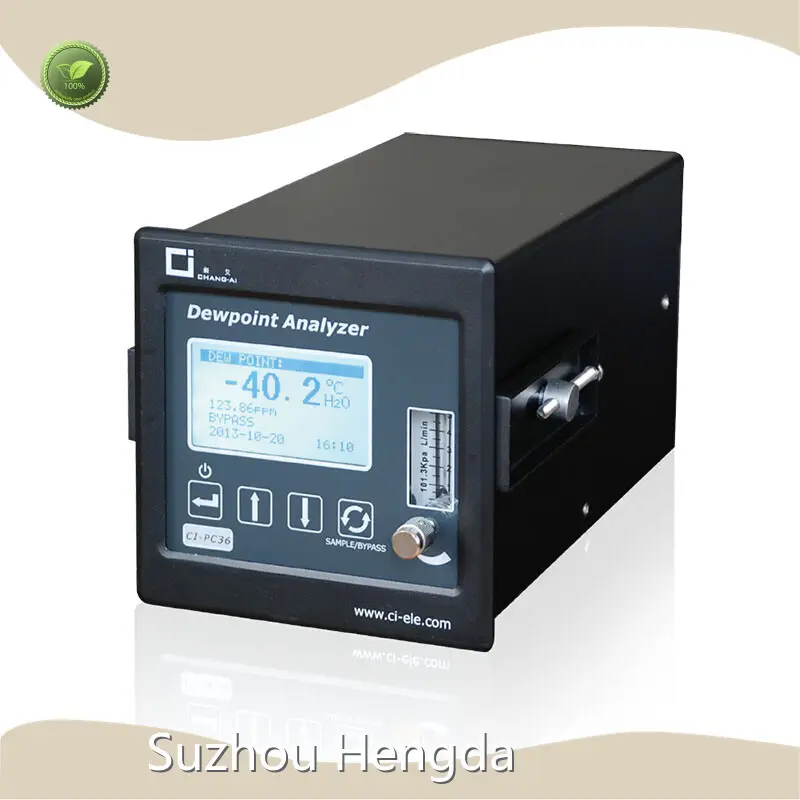

CI-PC36 dew point analyzer is an intelligent dew point analyzer with microprocessor as its core and ultra-thin alumina capacitive sensor as its measuring unit. It has the characteristics of high precision, good stability, comprehensive function and long service life.
|
Measure range |
Basic type : -60 - + 20℃ |
|
Standard type |
-80 - + 20℃ |
|
Extended type |
-100- + 20℃ |
|
Accuracy |
±3℃(-80- -60℃), ±2℃(-60 - + 20℃) |
|
Repeatability |
±0.5℃ |
|
Zero drift |
±1% FS/7d |
|
Range drift |
±1% FS/7d |
|
Response time : |
At the temperature of +20℃ and pressure of 1bar, the range reaches 63%[90%] |
|
-60 - -20℃ Td |
5s[10s] |
|
-20 - -60℃ Td |
45s[10min] |
|
Power supply |
85-264VA, 50/60Hz |
|
Environment temperature |
0-45℃ Environment Humidity: <90%RH |
|
Sample temperature |
0-50℃ |
|
Sample gas pressure |
Atmospheric conditions±10% (Gas outlet should be atmospheric conditions) |
|
External control signal |
1 set, control signal: 9-28VDC(optional) |
|
Analog output |
Standard confiquration set of 4-20MA, 0-20mA and 0-10V can be set by menu |
|
Communication |
RS485 (standard) / RS232 (optional) |
|
Alarm outout |
2 sets |
|
Relay contact point capacit |
24VDC, 0, 0.2A |
|
Inlet and outlet |
1 / 4 inch NPT internal thread, standard 6.5 hose ioin |
|
Instrument size |
W*H*D = 144m*144mm*251mm |
|
Immnstallation hole size of instrument |
L*W = 136mmx136mm |
USER EVALUATE
FAQ
The target market of our brand has been continuously developed over the years. For more information, please reach our team, we are more than happy to help.
1) O2/N2/H2 Flow rate: ____Nm3/h
2) O2/N2/H2 Purity: ____%
3) O2/N2/H2 Discharge pressure: ____Bar
4) Voltages and Frequency: _____V/PH/HZ
5) Application or use for which industry.
We will recommend the most suitable equipment for you according to your needs.
Company Advantage
• Our company enjoys great geographic location with different main transportation lines crossing the city. Besides, the unimpeded road condition provides strong guarantee for the successful transportation of products.
• Suzhou Hengda focuses on customer demand and provides professional services for customers. We build a harmonious relationship with customers and create a better service experience for customers.
• Suzhou Hengda's Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System are popular in the domestic market. They also enjoy a relatively high reputation in Southeast Asia, Europe, America, and other countries and regions.
Suzhou Hengda's Oxygen Generator,Nitrogen Generator,Gas Booster,Air Purification System,Gas Equipment System are available in diverse style and favorable price. If you have any needs, please leave your contact information. We will get back to you in time.
The company has developed into a first-class professional supplier of air separation equipment boasting the integration of scientific research and production capacities in China.
